HellermannTyton 308-34010
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

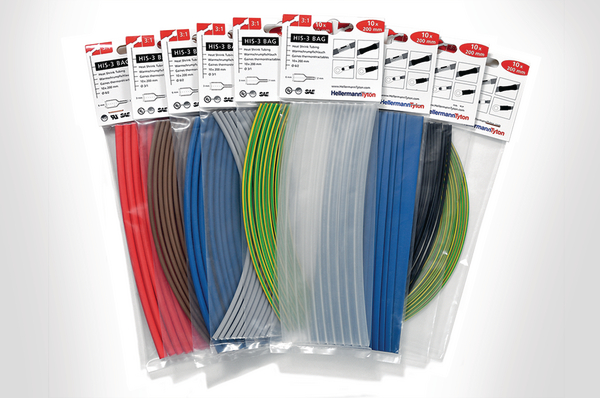

HIS-3 BAG tubings are useable for insulation and protection of cables and connectorsHeat shrinkable tubing 3:1 in blister bags
HellermannTyton 308-34010 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Application Tool
- H5002, H5004, E4500
- Behaviour at Heat Shock
- not fluid, not dripping, not cracking
- Behaviour At Low Temperature
- not cracking
- Colour
- Various (MIX)
- Features and Benefits
- 2x blue, black, grey, brown, green/yellow
- Heat Aging Test
- 168h/175°C
- Heat Shock Test
- 4h/250°C
- Marking Text
- no
- Minimum Elongation At Heat Aging
- 350%
- Package Quantity per
- bag
- Pack Cont.
- 10pcs.
- PART DESCRIPTION
- HIS-3-BAG-40/13-PO-X-MIX
- Printable (Yes/No)
- No
- Product Family
- HIS-3 BAG
- Product Group
- Heat shrinkable tubing 3:1 in blister bags
- Shrink Ratio
- 3:1
- Variant
- Thin-Wall
- With inner glue (Yes/No)
- No
Logistics and Packaging
- EAN / GTIN
- 4031026401287
- Packaging 1 - Height (m)
- 0.032m
- Packaging 1 - Length (m)
- 0.335m
- Packaging 1 - Qty
- 10
- Packaging 1 - Type
- bag
- Packaging 1 - Volume (m³)
- 0.00107m³
- Packaging 1 - Weight (kg)
- 0.179kg
- Packaging 1 - Width (m)
- 0.1m
- Weight
- 0.17kg
Material and Specifications
- Dielectric Strength
- 20 kV/mm according to ASTM D 150
- Elongation at break
- 800% nach ASTM D2671
- ELV compliant (Article 4 - 2)
- YES
- Flammability
- UL 224 VW-1 (except transparent)
- Hazardous good
- No
- Insulation Class
- B (VDE 0530)
- Material
- Polyolefin, cross-linked (PO-X)
- Min. Shrink Temperature - °C
- +100 °C
- Operating Temperature - °C
- -55 °C to +135 °C
- Specifications
- ANSI/UL 224, SAE - AMS - DTL-23053/5 Class 1 and 3, SAE - AMS - DTL-23053/5 Class 2 (clear)
- Tensile Strength
- 14MPa
- UL-File Number
- E143529
- UL OCD link
- YDPU8.E143529 YDPU2.E143529
- Volume Resistance
- 10¹⁴ Ω cm (ASTM D 876)
- Water Absorption
- 0.15%
More Information
- ETIM 6.0
- EC000217
- ETIM 7.0 Key
- EC000217
- UNSPSC Key
- 39121723
Product Dimensions
- Length (L)
- 200mm
- Longitudinal Change After Shrinkage
- -5 % max.
- Recov. ∅ d max.
- 13mm
- Supplied ∅ D min.
- 40mm
