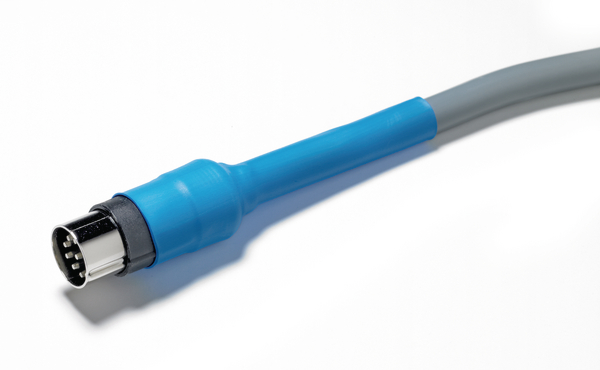

HellermannTyton 308-31806

Base Data

• Application Tool
  • H5002, H5004, E4500
• Colour
  • Blue (BU)
• Package Quantity per
  • pcs.
• Pack Cont.
  • 4m
• PART DESCRIPTION
  • HIS-3-18/6-PO-X-BU
• Printable (Yes/No)
  • No
• Product Family
  • HIS-3
• Product Group
  • Heat shrinkable tubing 3:1 on a reel
• Short Description
  • HIS is a range of three heat shrink tubing types in handy dispenser boxes. The range consists of HIS-Pack (2:1), HIS-3 (3:1) and HIS-A (adhesive lined, 3:1). With their ideal shrink ratio these products replace many differently sized tubing solutions by fitting almost any heat shrink task. The handy dispenser boxes allow for proper storage and the tubing can remain dust-free even after breaking open a package.
  • Heat Shrinkable Tubing 3:1 on a Reel 18/6 blue
• Shrink Ratio
  • 3:1
• Size
  • 3/4"
• Variant
  • Thin-Wall
• With inner glue (Yes/No)
  • No

Logistics and Packaging

• EAN / GTIN
  • 4031026218939
• Packaging 1 - Height (m)
  • 0.18m
• Packaging 1 - Length (m)
  • 0.165m
• Packaging 1 - Qty
  • 1
• Packaging 1 - Type
  • bag
• Packaging 1 - Volume (m³)
  • 0.00163m³
• Packaging 1 - Weight (kg)
  • 0.235kg
• Packaging 1 - Width (m)
  • 0.055m
• Packaging 3 - Height (m)
  • 0.4m
• Packaging 3 - Length (m)
  • 0.56m
• Packaging 3 - Qty
  • 40
• Packaging 3 - Type
  • carton
• Packaging 3 - Volume (m³)
  • 0.0829m³
• Packaging 3 - Weight (kg)
  • 9.9kg
• Packaging 3 - Width (m)
  • 0.37m
• Packaging 4 - Height (m)
  • 0.95m
• Packaging 4 - Length (m)
  • 1.2m
• Packaging 4 - Qty
  • 320
• Packaging 4 - Type
  • pallet
• Packaging 4 - Volume (m³)
  • 0.912m³
• Packaging 4 - Weight (kg)
  • 100.2kg
• Packaging 4 - Width (m)
  • 0.8m
• Reel Length
  • 4.0m
• Weight
  • 0.152kg

Material and Specifications

• CSA Certified
  • Yes
• Dielectric Strength
  • 20 kV/mm
• Elongation at break
  • 800% (ASTM D 2671)
• ELV compliant (Article 4 - 2)
  • YES
• Flammability
  • UL 224 VW-1
• Halogenfree
  • No
• Hazardous good
  • No
• Insulation Class
  • B (VDE 0530)
• Material
  • Polyolefin, cross-linked (PO-X)
• Min. Shrink Temperature - °C
  • +100 °C
• Operating Temperature - °C
  • -55 °C to +135 °C
• Specifications
  • ANSI/UL 224, C22.2 no. 198.1-06, SAE - AMS - DTL-23053/5 Class 1 and 3, SAE - AMS - DTL-23053/5 Class 2 (clear)
• Tensile Strength
  • 14MPa
• UL-File Number
  • E143529
• UL OCD link
  • YDPU8.E143529 YDPU2.E143529
• UL Recognized (US and Canada)
  • Yes
• Volume Resistance
  • 10¹⁴ Ω cm (ASTM D 876)

More Information

• ETIM 6.0
  • EC000217
• ETIM 7.0 Key
  • EC000217

Product Dimensions

• Length (L)
  • 4m
• Longitudinal Change After Shrinkage
  • -5 % max.
• Recov. ∅ d max.
  • 6.0mm
• Supplied ∅ D min.
  • 18.0mm
• Tube Shape
  • Flat
• Wall (WT)
  • 0.90mm
