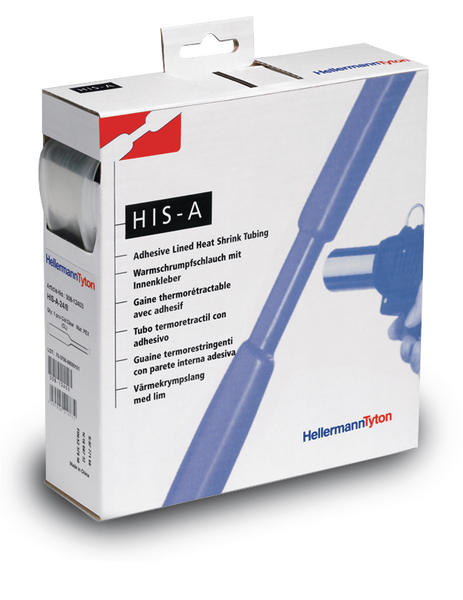

HellermannTyton 308-11803
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
HIS-A forms a seal against moisture and protect against corrosion and mechanical abrasion.Heat shrinkable tubing 3:1 on a reel
HellermannTyton 308-11803 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Application Tool
- H5002, H5004, E4500
- Behaviour at Heat Shock
- not cracking, not fluid, not dripping
- Behaviour At Low Temperature
- not cracking
- Colour
- Transparent (CL)
- Heat Aging Test
- 168h/150°C
- Heat Shock Test
- 4h/225°C
- Minimum Elongation At Heat Aging
- 220%
- Package Quantity per
- box
- Pack Cont.
- 4m
- PART DESCRIPTION
- HIS-A-18/6-PO-X-CL
- Printable (Yes/No)
- Yes
- Product Family
- HIS-A - with adhesive liner
- Product Group
- Heat shrinkable tubing 3:1 on a reel
- Short Description
- Heat Shrinkable Tubing with Adhesive Liner 3:1 on a Reel 18/6 transparent
- Shrink Ratio
- 3:1
- Variant
- Thin-Wall
- With inner glue (Yes/No)
- Yes
Logistics and Packaging
- EAN / GTIN
- 4031026270500
- Packaging 1 - Height (m)
- 0.048m
- Packaging 1 - Length (m)
- 0.164m
- Packaging 1 - Qty
- 1
- Packaging 1 - Type
- pack
- Packaging 1 - Volume (m³)
- 0.00127m³
- Packaging 1 - Weight (kg)
- 0.399kg
- Packaging 1 - Width (m)
- 0.161m
- Packaging 3 - Height (m)
- 0.4m
- Packaging 3 - Length (m)
- 0.56m
- Packaging 3 - Qty
- 40
- Packaging 3 - Type
- carton
- Packaging 3 - Volume (m³)
- 0.0829m³
- Packaging 3 - Weight (kg)
- 16.46kg
- Packaging 3 - Width (m)
- 0.37m
- Packaging 4 - Height (m)
- 0.95m
- Packaging 4 - Length (m)
- 1.2m
- Packaging 4 - Qty
- 320
- Packaging 4 - Type
- pallet
- Packaging 4 - Volume (m³)
- 0.912m³
- Packaging 4 - Weight (kg)
- 152.68kg
- Packaging 4 - Width (m)
- 0.8m
- Reel Length
- 4.0m
- Weight
- 0.349kg
Material and Specifications
- Adhesive
- Hot melt adhesive
- CSA Certified
- No
- Dielectric Strength
- 15 kV/mm according to IEC 684 P2
- Elongation at break
- 400%
- ELV compliant (Article 4 - 2)
- YES
- Hazardous good
- No
- Insulation Class
- A (VDE 0530)
- Material
- Polyolefin, cross-linked (PO-X)
- Min. Shrink Temperature - °C
- +120 °C
- Operating Temperature - °C
- -55 °C to +125 °C
- Softening Point Adhesive
- +85 °C
- Specifications
- CSA, CSA-C22.2 No.198.1, SAE - AMS - DTL-23053/4
- Tensile Strength
- 18MPa
- UL-File Number
- E143529
- Volume Resistance
- 10¹⁴ Ω cm (ASTM D 876)
More Information
- ETIM 6.0
- EC000217
- ETIM 7.0 Key
- EC000217
Product Dimensions
- Length (L)
- 4m
- Longitudinal Change After Shrinkage
- -10 % max.
- Recov. ∅ d max.
- 6.0mm
- Supplied ∅ D min.
- 18.0mm
- Tube Shape
- Flat
- Wall (WT)
- 2.25mm
