Description

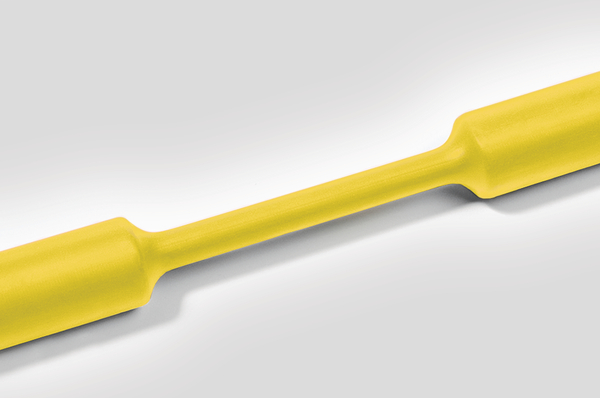

This high performance thin wall tubing is used extensively for electrical and mechanical protection. It is also well proven for sleeve marking to identify wiring circuits.Heat shrinkable tubing 2:1 - flexible and coloured
HellermannTyton 305-76204 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Colour
- Yellow (YE)
- Elongation at Heat Shock
- 350%
- Heat Shock Test
- 4h/200°C
- Package Quantity per
- metre
- Pack Cont.
- 25m
- PART DESCRIPTION
- HFT-A-76.0/38.0-PO-X-YE
- Printable (Yes/No)
- No
- Product Family
- HFT-A - self extinguishing
- Product Group
- Heat shrinkable tubing 2:1 - flexible and coloured
- Short Description
- Heat Shrinkable Tubing 2:1 VG-Norm 76.0/38.0 yellow
- HFT-A is coloured and self extinguishing. HFT-B is transparent and halogen free.
- Shrink Ratio
- 2:1
- Size
- 3"
- Tensile Strength at Heat Shock
- 15MPa
- Variant
- Thin-Wall
- With inner glue (Yes/No)
- No
Logistics and Packaging
- EAN / GTIN
- 4031026142241
- Packaging 1 - Height (m)
- 0.395m
- Packaging 1 - Length (m)
- 0.245m
- Packaging 1 - Qty
- 25
- Packaging 1 - Type
- reel
- Packaging 1 - Volume (m³)
- 0.03823m³
- Packaging 1 - Weight (kg)
- 5.006kg
- Packaging 1 - Width (m)
- 0.395m
- Packaging 3 - Height (m)
- 0.4m
- Packaging 3 - Length (m)
- 0.25m
- Packaging 3 - Qty
- 25
- Packaging 3 - Type
- carton
- Packaging 3 - Volume (m³)
- 0.04m³
- Packaging 3 - Weight (kg)
- 5.506kg
- Packaging 3 - Width (m)
- 0.4m
- Packaging 4 - Length (m)
- 1.2m
- Packaging 4 - Qty
- 1500
- Packaging 4 - Type
- pallet
- Packaging 4 - Weight (kg)
- 351.36kg
- Packaging 4 - Width (m)
- 0.8m
- Reel Length
- 25.0m
- Weight
- 5.006kg
Material and Specifications
- CSA Certified
- Yes
- Designation as per VG-Norm
- VG 95343 T05 A 013 E
- Dielectric Strength
- 20 kV/mm according to IEC 684 P2
- Elongation at break
- 400 %
- ELV compliant (Article 4 - 2)
- YES
- Flammability
- self-extinguishing, UL 224 VW-1
- Halogenfree
- No
- Hazardous good
- No
- Insulation Class
- B (VDE 0530)
- Material
- Polyolefin, cross-linked (PO-X)
- Min. Shrink Temperature - °C
- +135 °C
- Nato number
- D8527
- Operating Temperature - °C
- -55 °C to +135 °C
- Specifications
- ANSI/UL 224, CLASS 903201, DEF STAN 59-97/3, MIL-DTL-23053/5C, NF F 00-608, SAE - AMS - DTL-23053/5C, VG 95343-5:2006-06
- UL-File Number
- E143529
- Volume Resistance
- 10¹⁴ Ω cm
More Information
- ETIM 6.0
- EC000217
- ETIM 7.0 Key
- EC000217
Product Dimensions
- Longitudinal Change After Shrinkage
- -5 % max.
- Recov. ∅ d max.
- 38.0mm
- Supplied ∅ D min.
- 76.0mm
- Wall (WT)
- 1.30mm
