Description

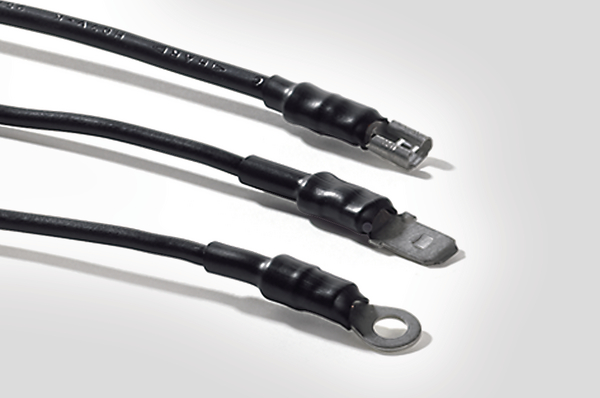

TCN20 is suitable for a wide range of applications like electrical insulations, mechanical protection and cable bundling.Heat shrinkable tubing 2:1 - Self extinguishing
HellermannTyton 300-73598 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Application Tool
- E4500
- Colour
- Blue (BU)
- Heat Aging Test
- 168h/160°C
- Minimum Elongation At Heat Aging
- 350%
- Minimum Tensile Strength At Heat Aging
- 14MPa
- Package Quantity per
- box
- Pack Cont.
- 2
- PART DESCRIPTION
- TCN20 101.6/50.8-PO-X-BU
- Printable (Yes/No)
- Yes
- Product Family
- TCN20
- Product Group
- Heat shrinkable tubing 2:1 - Self extinguishing
- Shrink Ratio
- 2:1
- Size
- 4"
- Variant
- Thin-Wall
- With inner glue (Yes/No)
- No
Logistics and Packaging
- EAN / GTIN
- 4031026498874
- Packaging 1 - Qty
- 2
- Packaging 1 - Type
- bag
- Packaging 3 - Qty
- 2
- Packaging 3 - Type
- carton
Material and Specifications
- CSA Certified
- Yes
- Dielectric Strength
- 20 kV/mm
- Elongation at break
- 400%
- Flammability
- UL 224 VW-1
- Halogenfree
- No
- Insulation Class
- E (VDE 0530)
- Material
- Polyolefin, cross-linked (PO-X)
- Min. Shrink Temperature - °C
- +100 °C
- Operating Temperature - °C
- -55 °C to +125 °C
- Specifications
- C22.2 no. 198.1-06, UL 224 125 °C 600V VW-1
- Tensile Strength
- 14MPa
- UL-File Number
- E143529
- UL OCD link
- YDPU8.E143529 YDPU2.E143529
- UL Recognized (US and Canada)
- Yes
- Volume Resistance
- 10¹⁴ Ω cm
More Information
- ETIM 6.0
- EC000217
- ETIM 7.0 Key
- EC000217
- UNSPSC Key
- 39121723
Product Dimensions
- Longitudinal Change After Shrinkage
- +/-5 %
- Recov. ∅ d max.
- 50.8mm
- Supplied ∅ D min.
- 101.6mm
- Wall (WT)
- 1.02mm
