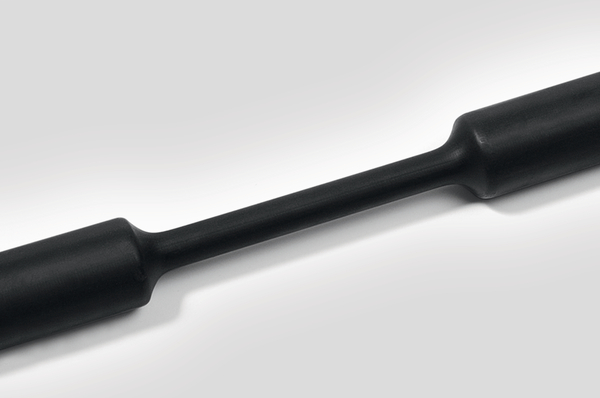

HellermannTyton 300-73110
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
TCN20 is suitable for a wide range of applications like electrical insulations, mechanical protection and cable bundling.Heat shrinkable tubing 2:1 - Self extinguishing
HellermannTyton 300-73110 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Application Tool
- H5002, H5004, E4500
- Colour
- Black (BK)
- Heat Aging Test
- 168h/160°C
- Minimum Elongation At Heat Aging
- 350%
- Minimum Tensile Strength At Heat Aging
- 14MPa
- Package Quantity per
- reel
- Pack Cont.
- 30m
- PART DESCRIPTION
- TCN20-38.1/19.1-PO-X-BK
- Printable (Yes/No)
- Yes
- Product Family
- TCN20
- Product Group
- Heat shrinkable tubing 2:1 - Self extinguishing
- Short Description
- Low-Heat Shrinkable Tubing 2:1 self extinguishing 38,1/19,1
- Shrink Ratio
- 2:1
- Size
- 1-1/2"
- Variant
- Thin-Wall
- With inner glue (Yes/No)
- No
Logistics and Packaging
- EAN / GTIN
- 4031026282817
- Packaging 1 - Height (m)
- 0.075m
- Packaging 1 - Length (m)
- 0.36m
- Packaging 1 - Qty
- 30
- Packaging 1 - Type
- reel
- Packaging 1 - Volume (m³)
- 0.00972m³
- Packaging 1 - Weight (kg)
- 3.24kg
- Packaging 1 - Width (m)
- 0.36m
- Packaging 3 - Height (m)
- 0.415m
- Packaging 3 - Length (m)
- 0.4m
- Packaging 3 - Qty
- 150
- Packaging 3 - Type
- carton
- Packaging 3 - Volume (m³)
- 0.0664m³
- Packaging 3 - Weight (kg)
- 16.7kg
- Packaging 3 - Width (m)
- 0.4m
- Packaging 4 - Height (m)
- 9.75m
- Packaging 4 - Length (m)
- 1.2m
- Packaging 4 - Qty
- 1800
- Packaging 4 - Type
- pallet
- Packaging 4 - Volume (m³)
- 9.36m³
- Packaging 4 - Weight (kg)
- 221.4kg
- Packaging 4 - Width (m)
- 0.8m
- Reel Length
- 30.0m
- 100.0ft
- Weight
- 3.24kg
Material and Specifications
- CSA Certified
- No
- Dielectric Strength
- 20 kV/mm
- Elongation at break
- 400%
- ELV compliant (Article 4 - 2)
- YES
- Flammability
- UL 224 VW-1
- Halogenfree
- No
- Hazardous good
- No
- Insulation Class
- E (VDE 0530)
- Material
- Polyolefin, cross-linked (PO-X)
- Min. Shrink Temperature - °C
- +100 °C
- Operating Temperature - °C
- -55 °C to +125 °C
- Specifications
- ANSI/UL 224, CSA
- Tensile Strength
- 14MPa
- UL-File Number
- E143529
- UL OCD link
- YDPU8.E143529 YDPU2.E143529
- UL Recognized (US and Canada)
- Yes
- Volume Resistance
- 10¹⁴ Ω cm
More Information
- ETIM 6.0
- EC000217
- ETIM 7.0 Key
- EC000217
- UNSPSC Key
- 39121723
Product Dimensions
- Length (L)
- 30m
- Longitudinal Change After Shrinkage
- +/-5 %
- Nominal ∅
- 38.1mm
- Recov. ∅ d max.
- 0.75"
- 19.1mm
- Supplied ∅ D min.
- 38.1mm
- 1.5"
- Tube Shape
- Round
- Wall (WT)
- 1.02mm
- .04"
