HellermannTyton 183-21060
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

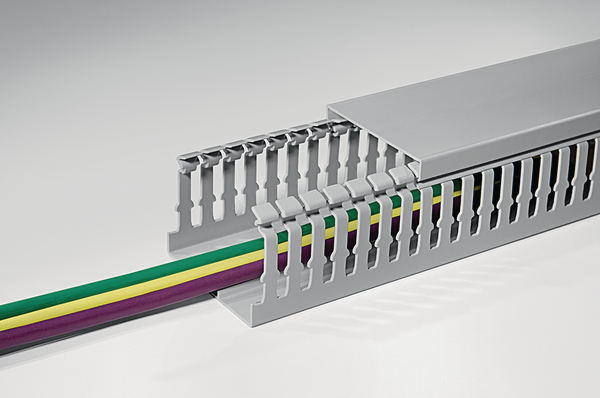

HelaDuct HTWD-HF wiring ducts are used to route and protect wires in control panels and switching systems where there are high demands on personal or material safety in case of fire, such as in public transport, tunnels, data-processing centers or public buildings.Halogen-free wiring ducts
HellermannTyton 183-21060 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Colour
- Grey (GY)
- Fixation Method
- Screw Mounting
- Package Quantity per
- box
- Pack Cont.
- 16m
- PART DESCRIPTION
- HTWD-HF-100X60-PC/ABS-GY
- Product Family
- HelaDuct HTWD-HF
- Product Group
- Halogen-free wiring ducts
- Short Description
- Wiring duct 100x60 mm, halogen-free, 2000 mm, grey
- Type of side wall
- Slotted
Logistics and Packaging
- EAN / GTIN
- 4031026564999
- Packaging 3 - Height (m)
- 0.154m
- Packaging 3 - Length (m)
- 2.01m
- Packaging 3 - Qty
- 16
- Packaging 3 - Type
- carton
- Packaging 3 - Volume (m³)
- 0.0774m³
- Packaging 3 - Weight (kg)
- 14.9kg
- Packaging 3 - Width (m)
- 0.25m
- Packaging 4 - Length (m)
- 1.2m
- Packaging 4 - Qty
- 432
- Packaging 4 - Type
- pallet
- Packaging 4 - Weight (kg)
- 423.3kg
- Packaging 4 - Width (m)
- 0.8m
Material and Specifications
- ELV compliant (Article 4 - 2)
- YES
- EN 45545-2 Results
- R22 HL2, R23 HL2
- Flammability
- UL 94 V0
- Halogenfree
- Yes
- Hazardous good
- No
- Material
- Acrylonitrile Butadiene Styrene alloyed with Polycarbonate (PC/ABS)
- Operating Temperature - °C
- -25 °C to +90 °C, intermittent +100 °C
- Self extinguishing (Yes/No) ETIM
- Yes
- Specifications
- ANSI/UL 1565, ANSI/UL 746B, CAN/CSA-C22.2 no. 18.5, DIN EN 45545-2 (02/2016)
- UL-File Number
- E357929
More Information
- ETIM 6.0
- EC000012
- ETIM 7.0 Key
- EC000012
Product Dimensions
- Height (H)
- 60mm
- Length (L)
- 2m
- Width (W)
- 100mm
- Width (W2)
- 6mm
- Width (W3)
- 6.5mm
