HellermannTyton 170-02102
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

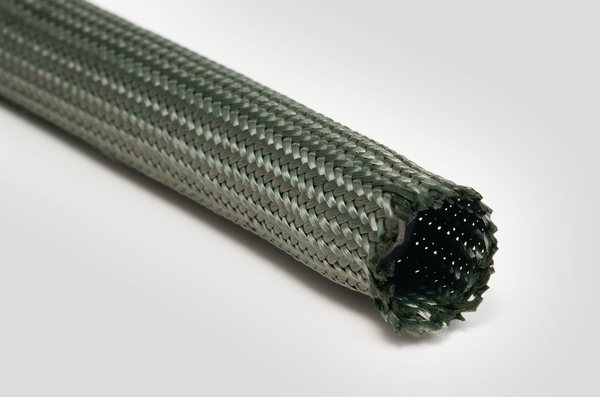

Helagaine HEGMAN provides excellent mechanical protection for applications involving high temperatures and fire-protection, particularly in the aerospace, military, railway and ship-building industries.Meta-aramid braided sleeving
HellermannTyton 170-02102 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Colour
- Green (GN)
- Open, post termination
- No
- Package Quantity per
- reel
- Pack Cont.
- 100m
- PART DESCRIPTION
- HEGMAN-06-NOMEX®-GN
- Product Family
- Helagaine HEGMAN
- Product Group
- Meta-aramid braided sleeving
- Short Description
- Braided sleeving meta-aramid green 6mm
Logistics and Packaging
- EAN / GTIN
- 4031026404769
- Packaging 1 - Height (m)
- 0.062m
- Packaging 1 - Length (m)
- 0.37m
- Packaging 1 - Qty
- 100
- Packaging 1 - Type
- reel
- Packaging 1 - Volume (m³)
- 0.00849m³
- Packaging 1 - Weight (kg)
- 1.34kg
- Packaging 1 - Width (m)
- 0.37m
- Packaging 3 - Height (m)
- 0.38m
- Packaging 3 - Length (m)
- 0.38m
- Packaging 3 - Qty
- 500
- Packaging 3 - Type
- carton
- Packaging 3 - Volume (m³)
- 0.0549m³
- Packaging 3 - Weight (kg)
- 7.2kg
- Packaging 3 - Width (m)
- 0.38m
- Packaging 4 - Length (m)
- 1.2m
- Packaging 4 - Qty
- 9000
- Packaging 4 - Type
- pallet
- Packaging 4 - Weight (kg)
- 150.6kg
- Packaging 4 - Width (m)
- 0.8m
- Reel Length
- 100m
- Weight
- 1.34kg
Material and Specifications
- Description According to EN6049
- DIN EN6049-003-06-5
- ELV compliant (Article 4 - 2)
- YES
- Flammability
- UL 94 V0 (Raw material), UL 224 VW-1
- Hazardous good
- No
- Material
- Polyaramid Polymetaphenylene Isophthalamide (NOMEX)
- Melting Point
- Does not melt / Carbonisation above +370 °C
- Operating Temperature - °C
- +240 °C
- Specifications
- DIN EN 6049
More Information
- ETIM 6.0
- EC001182
- ETIM 7.0 Key
- EC001182
Product Dimensions
- Bundlediamter Range ETIM (Braided Sleeving)
- 4-8
- Bundle ∅ max.
- 8mm
- Bundle ∅ min.
- 4mm
- Nominal ∅
- 6mm
