HellermannTyton 166-41206
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

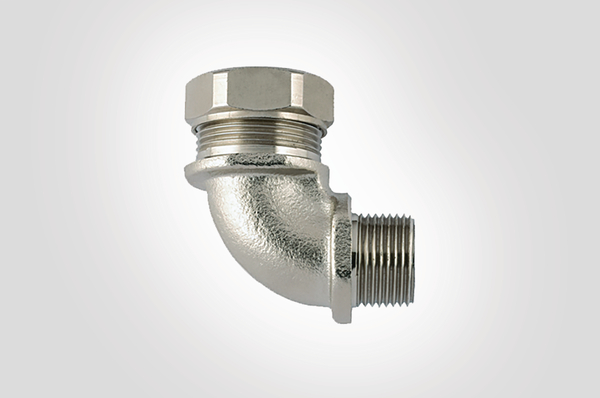

90° fitting, fixed external thread, nickel plated brass.
Fulfils IP66, IP67, IP68 and IP69k with PSRSC conduits.Fittings for spiral-reinforced PVC conduits
Fulfils IP66, IP67, IP68 and IP69k with PSRSC conduits.Fittings for spiral-reinforced PVC conduits
HellermannTyton 166-41206 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Colour
- Metal (ML)
- Package Quantity per
- bag
- Pack Cont.
- 2pcs.
- PART DESCRIPTION
- PSRSC32-90FMC-M32-NPB/PA6-ML
- Product Family
- PSRSC-90FMC 90° compression fitting
- Product Group
- Fittings for spiral-reinforced PVC conduits
- Short Description
- Compression Fitting with rigid External Thread for Spiral-Reinforced PVC Conduits 90° ø32mm M32
- Type of connection
- Thread
- Variant
- 90°-elbow
Logistics and Packaging
- EAN / GTIN
- 4031026411026
- Packaging 1 - Height (m)
- 0.042m
- Packaging 1 - Length (m)
- 0.19m
- Packaging 1 - Qty
- 2
- Packaging 1 - Type
- bag
- Packaging 1 - Volume (m³)
- 0.00128m³
- Packaging 1 - Weight (kg)
- 0.52kg
- Packaging 1 - Width (m)
- 0.16m
- Weight
- 0.52kg
Material and Specifications
- ELV compliant (Article 4 - 2)
- YES
- Halogenfree
- Yes
- Hazardous good
- No
- IP-Rating
- IP68
- Material
- Nickel Plated Brass (NPB), Polyamide 6 (PA6)
- Material of fitting ETIM
- Metal (MET)
- Operating Temperature - °C
- -50 °C to +135 °C
More Information
- ETIM 6.0
- EC001178
- ETIM 7.0 Key
- EC001178
Product Dimensions
- A/F Nut (A/F3)
- 42mm
- Height (H)
- 42mm
- Lowest inner diameter
- 24.6mm
- Min. Bore Size (B)
- 24.6mm
- Nominal ∅
- 1-1/4"
- 32mm
- Outside ∅ max (OD max.)
- 42mm
- Thread Length (TL)
- 15.0mm
- Thread Size
- M32
