HellermannTyton 166-40709
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

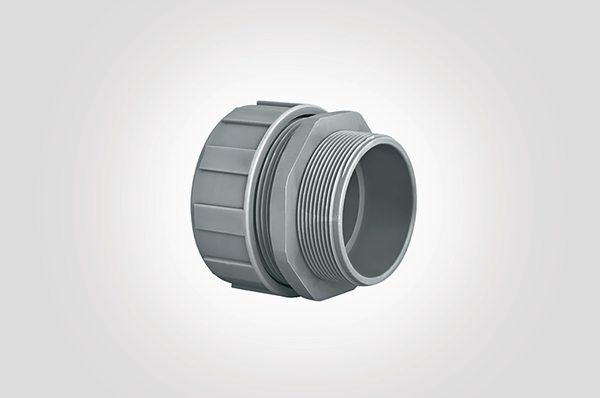

Straight PA66 fitting, fixed external thread.
Fulfils IP65 with PSR conduits.
Fulfils IP66 and IP67 with PSRSC conduits.Fittings for spiral-reinforced PVC conduits
Fulfils IP65 with PSR conduits.
Fulfils IP66 and IP67 with PSRSC conduits.Fittings for spiral-reinforced PVC conduits
HellermannTyton 166-40709 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Colour
- Grey (GY)
- Package Quantity per
- bag
- Pack Cont.
- 1pc.
- PART DESCRIPTION
- PSR63-S-M63-PA66-GY
- Product Family
- PSR-S Straight fitting
- Product Group
- Fittings for spiral-reinforced PVC conduits
- Short Description
- Straight fitting grey with rigid External Thread ø63mm M63
- Type of connection
- Snap-connection
- Variant
- Straight
Logistics and Packaging
- EAN / GTIN
- 4031026410753
- Packaging 1 - Height (m)
- 0.076m
- Packaging 1 - Length (m)
- 0.056m
- Packaging 1 - Qty
- 1
- Packaging 1 - Type
- pcs.
- Packaging 1 - Volume (m³)
- 0.00032m³
- Packaging 1 - Weight (kg)
- 0.12kg
- Packaging 1 - Width (m)
- 0.076m
- Packaging 2 - Height (m)
- 0.07m
- Packaging 2 - Length (m)
- 0.23m
- Packaging 2 - Qty
- 2
- Packaging 2 - Type
- bag
- Packaging 2 - Volume (m³)
- 0.0026m³
- Packaging 2 - Weight (kg)
- 0.24kg
- Packaging 2 - Width (m)
- 0.16m
- Weight
- 0.12kg
Material and Specifications
- ELV compliant (Article 4 - 2)
- YES
- Flammability
- UL 94 V2
- Halogenfree
- Yes
- Hazardous good
- No
- IP-Rating
- IP65 with PSR conduits, IP66 with PSRSC conduits, IP67 with PSRSC conduits
- Material
- Polyamide 6.6 (PA66)
- Material of fitting ETIM
- Polyamide (PA)
- Operating Temperature - °C
- -50 °C to +135 °C
- Specifications
- ANSI/UL 1695
- UL-File Number
- E325250
More Information
- ETIM 6.0
- EC001178
- ETIM 7.0 Key
- EC001178
Product Dimensions
- Height (H)
- 76mm
- Length (L)
- 56mm
- Lowest inner diameter
- 48mm
- Min. Bore Size (B)
- 48.0mm
- Nominal ∅
- 63mm
- 2-1/2"
- Outside ∅ max (OD max.)
- 76mm
- Thread Length (TL)
- 16mm
- Thread Size
- M63
