Description

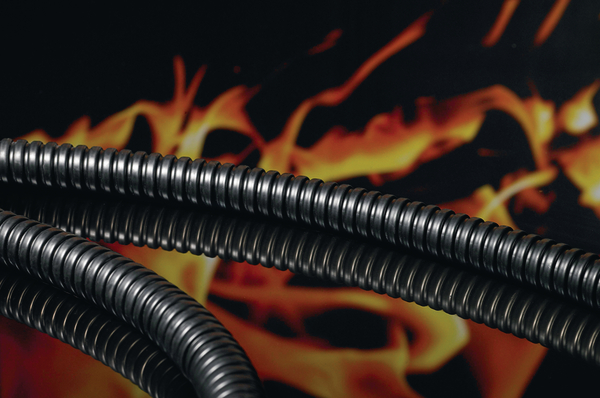

Flexible galvanised steel conduit with highly flame resistant, low smoke and low toxicity coating, diesigned for the rail industry, underground stations, tunnels, public buildings and wherever high fire protection is required.Metallic conduits with plastic coating
HellermannTyton 166-30905 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Colour
- Black (BK)
- Conduit Model
- Metallic with plastic coating
- Package Quantity per
- reel
- Pack Cont.
- 10m
- PART DESCRIPTION
- LFHCS40-GS/PO-BK
- Product Family
- LFHCS Galvanised metallic conduit, LFH coating
- Product Group
- Metallic conduits with plastic coating
- Short Description
- LFHCS Galvanised Steel Conduit with LFH Coating black ø40mm reel 10m
Logistics and Packaging
- EAN / GTIN
- 4031026306872
- Packaging 1 - Height (m)
- 0.255m
- Packaging 1 - Length (m)
- 0.42m
- Packaging 1 - Qty
- 10
- Packaging 1 - Type
- reel
- Packaging 1 - Volume (m³)
- 0.04498m³
- Packaging 1 - Weight (kg)
- 7.4kg
- Packaging 1 - Width (m)
- 0.42m
- Reel Length
- 10m
- Weight
- 7.4kg
Material and Specifications
- Electrical characteristics
- Not specified
- ELV compliant (Article 4 - 2)
- YES
- EN61386 Classification
- with compression fittings
- Flammability
- UL 94 V0
- Halogenfree
- Yes
- Hazardous good
- No
- IP-Rating
- IP66 (in conjunction with HG fittings)
- Material
- Galvanised Steel (GS), Polyolefin (PO)
- Operating Temperature - °C
- -25 °C to +90 °C, intermittent +100 °C
- Specifications
- BS EN 61386-23:2004
More Information
- ETIM 6.0
- EC001179
- ETIM 7.0 Key
- EC001179
Product Dimensions
- Diameter (D)
- 37.3mm
- Inside Ø (ID)
- 37.3mm
- Length (L)
- 10m
- Min. Bending Radius (R)
- 80mm
- Nominal ∅
- 40mm
- 1-9/16"
- Outside Ø (OD)
- 44.2mm
- Weight
- 739g/m
