Description

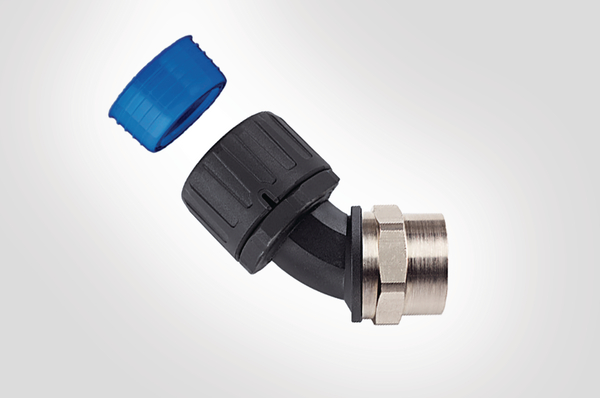

45° elbow swivel brass internal thread with conduit seal and washer.
Fulfils IP66, IP67, IP68 and IP69k.Fittings with swivel internal thread
Fulfils IP66, IP67, IP68 and IP69k.Fittings with swivel internal thread
HellermannTyton 166-24404 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Brass Thread (Y/N)
- Yes
- Colour
- Black (BK)
- Package Quantity per
- bag
- Pack Cont.
- 2pcs.
- PART DESCRIPTION
- HGL42-45F-M50-PA66/NPB/TPE-BK
- Product Family
- HGL-45F 45° Elbow fitting, IP68
- Product Group
- Fittings with swivel internal thread
- Short Description
- Elbow Fitting 45° with Swivel Internal Thread IP68 ø42mm M50
- Strain Relief Function (Y/N)
- No
- Swivel Thread (Y/N)
- Yes
- Thread type
- metric
- Type of connection
- Snap-connection
- Variant
- 45°-elbow
Logistics and Packaging
- EAN / GTIN
- 4031026305714
- Packaging 1 - Height (m)
- 0.063m
- Packaging 1 - Length (m)
- 0.3m
- Packaging 1 - Qty
- 2
- Packaging 1 - Type
- bag
- Packaging 1 - Volume (m³)
- 0.00302m³
- Packaging 1 - Weight (kg)
- 0.393kg
- Packaging 1 - Width (m)
- 0.16m
- Weight
- 0.393kg
Material and Specifications
- ELV compliant (Article 4 - 2)
- YES
- Flammability
- UL 94 V2
- Halogenfree
- Yes
- Hazardous good
- No
- IP-Rating
- IP66, IP67, IP68, IP69k
- Material
- Polyamide 6.6 (PA66), Nickel Plated Brass (NPB), Thermoplastic Elastomer (TPE)
- Material of fitting ETIM
- Polyamide (PA)
- Operating Temperature - °C
- -50 °C to +135 °C
- Specifications
- UL-Recognized
More Information
- ETIM 6.0
- EC001176
- ETIM 7.0 Key
- EC001176
Product Dimensions
- A/F Thread (A/F2)
- 52mm
- Length (L)
- 115mm
- Lowest inner diameter
- 39mm
- Min. Bore Size (B)
- 39.0mm
- Nominal ∅
- 42mm
- 1-5/8"
- NW ∅
- 36mm
- Outside ∅ max (OD max.)
- 63mm
- Thread Length (TL)
- 14mm
- Thread Size
- M50
