HellermannTyton 166-24009
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

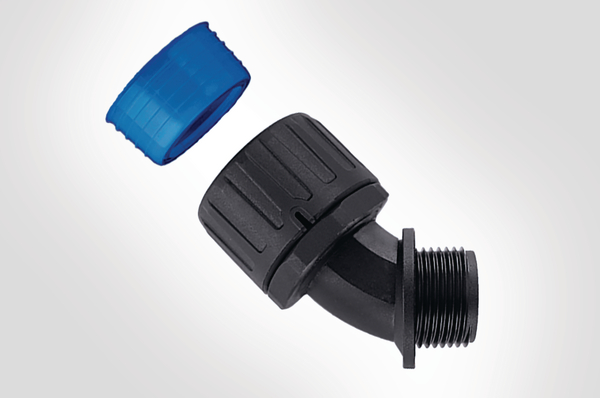

45° elbow external thread with conduit seal and washer.
Fulfils IP66, IP67, IP68 and IP69k.Fittings with fixed external thread
Fulfils IP66, IP67, IP68 and IP69k.Fittings with fixed external thread
HellermannTyton 166-24009 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Brass Thread (Y/N)
- No
- Colour
- Black (BK)
- Package Quantity per
- bag
- Pack Cont.
- 10pcs.
- PART DESCRIPTION
- HGL28-45-PG21-PA66/TPE-BK
- Product Family
- HGL-45 45° Elbow fitting, IP68
- Product Group
- Fittings with fixed external thread
- Short Description
- Elbow Fitting 45° with Fixed External Thread IP68 ø28mm PG21
- Strain Relief Function (Y/N)
- No
- Swivel Thread (Y/N)
- No
- Thread type
- not applicable
- Type of connection
- Snap-connection
- Variant
- 45°-elbow
Logistics and Packaging
- EAN / GTIN
- 4031026305462
- Packaging 1 - Height (m)
- 0.044m
- Packaging 1 - Length (m)
- 0.3m
- Packaging 1 - Qty
- 10
- Packaging 1 - Type
- bag
- Packaging 1 - Volume (m³)
- 0.00211m³
- Packaging 1 - Weight (kg)
- 0.3kg
- Packaging 1 - Width (m)
- 0.16m
- Weight
- 0.3kg
Material and Specifications
- ELV compliant (Article 4 - 2)
- YES
- Flammability
- UL 94 V2
- Halogenfree
- Yes
- Hazardous good
- No
- IP-Rating
- IP66, IP67, IP68, IP69k
- Material
- Polyamide 6.6 (PA66), Thermoplastic Elastomer (TPE)
- Material of fitting ETIM
- Polyamide (PA)
- Operating Temperature - °C
- -50 °C to +135 °C
- Specifications
- CSA-C22.2 No.227.3
- UL-File Number
- E325250
More Information
- ETIM 6.0
- EC001176
- ETIM 7.0 Key
- EC001176
Product Dimensions
- Face Diameter FD (metric)
- 35mm
- Length (L)
- 73mm
- Lowest inner diameter
- 19mm
- Min. Bore Size (B)
- 19.0mm
- Nominal ∅
- 1-1/8"
- 28mm
- NW ∅
- 23mm
- Outside ∅ max (OD max.)
- 44mm
- Thread Length (TL)
- 12mm
- Thread Size
- PG21
