HellermannTyton 166-22510
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

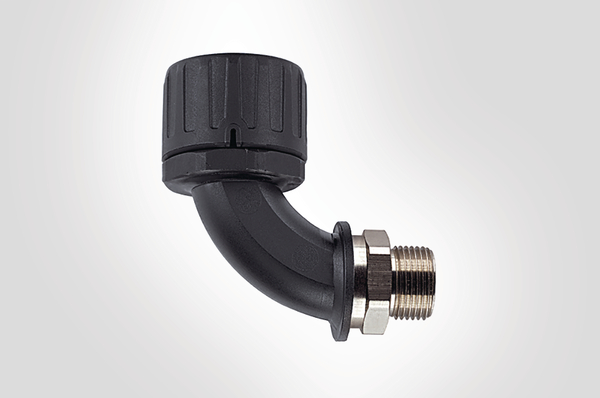

90° elbow swivel brass external thread.Fittings with swivel external thread
HellermannTyton 166-22510 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Brass Thread (Y/N)
- Yes
- Colour
- Black (BK)
- Package Quantity per
- bag
- Pack Cont.
- 10pcs.
- PART DESCRIPTION
- HG16-90M-PG9-PA66/NPB-BK
- Product Family
- HG-90M 90° Elbow fitting, IP66
- Product Group
- Fittings with swivel external thread
- Short Description
- Elbow Fitting 90° with Swivel External Thread IP66 ø16mm PG9
- Strain Relief Function (Y/N)
- No
- Swivel Thread (Y/N)
- Yes
- Thread type
- not applicable
- Type of connection
- Snap-connection
- Variant
- 90°-elbow
Logistics and Packaging
- EAN / GTIN
- 4031026304243
- Packaging 1 - Height (m)
- 0.029m
- Packaging 1 - Length (m)
- 0.3m
- Packaging 1 - Qty
- 10
- Packaging 1 - Type
- bag
- Packaging 1 - Volume (m³)
- 0.00139m³
- Packaging 1 - Weight (kg)
- 0.269kg
- Packaging 1 - Width (m)
- 0.16m
- Weight
- 0.269kg
Material and Specifications
- ELV compliant (Article 4 - 2)
- YES
- Flammability
- UL 94 V2
- Halogenfree
- Yes
- Hazardous good
- No
- IP-Rating
- IP66
- Material
- Polyamide 6.6 (PA66), Nickel Plated Brass (NPB)
- Material of fitting ETIM
- Polyamide (PA)
- Operating Temperature - °C
- -50 °C to +135 °C
- Specifications
- UL-Recognized
More Information
- ETIM 6.0
- EC001176
- ETIM 7.0 Key
- EC001176
Product Dimensions
- A/F Thread (A/F2)
- 22mm
- Length (L)
- 60mm
- Lowest inner diameter
- 10.5mm
- Min. Bore Size (B)
- 10.5mm
- Nominal ∅
- 5/8"
- 16mm
- NW ∅
- 12mm
- Outside ∅ max (OD max.)
- 29mm
- Thread Length (TL)
- 10mm
- Thread Size
- PG9
