Description

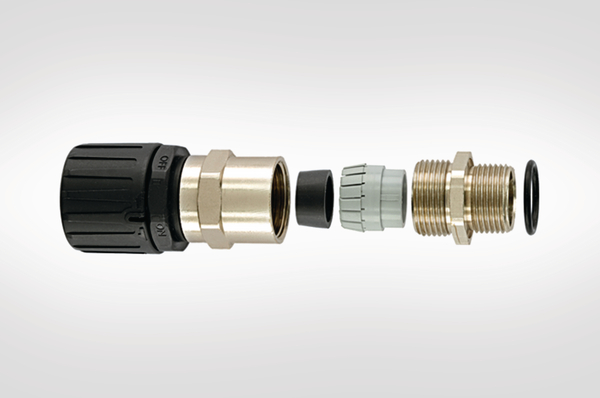

Straight fitting with cable seal and strain relief.Fittings with strain relief and cable seal
HellermannTyton 166-21500 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Brass Thread (Y/N)
- Yes
- Cable ∅ max
- 10mm
- Cable ∅ min
- 4.5mm
- Colour
- Black (BK)
- Package Quantity per
- bag
- Pack Cont.
- 10pcs.
- PART DESCRIPTION
- HG13-SCG-M16-PA66/NPB-BK
- Product Family
- HG-SCG Straight fitting, IP66
- Product Group
- Fittings with strain relief and cable seal
- Short Description
- Straight cable gland fitting IP66 ø13mm M16 black
- Strain Relief Function (Y/N)
- Yes
- Swivel Thread (Y/N)
- No
- Thread type
- metric
- Type of connection
- Snap-connection
- Variant
- Straight
Logistics and Packaging
- EAN / GTIN
- 4031026325934
- Packaging 1 - Height (m)
- 0.03m
- Packaging 1 - Length (m)
- 0.23m
- Packaging 1 - Qty
- 10
- Packaging 1 - Type
- bag
- Packaging 1 - Volume (m³)
- 0.0011m³
- Packaging 1 - Weight (kg)
- 0.5kg
- Packaging 1 - Width (m)
- 0.16m
- Weight
- 0.5kg
Material and Specifications
- ELV compliant (Article 4 - 2)
- YES
- Flammability
- UL 94 V2
- Halogenfree
- Yes
- Hazardous good
- No
- IP-Rating
- IP66 (in conjunction with HG fittings)
- Material
- Polyamide 6.6 (PA66), Nickel Plated Brass (NPB)
- Material of fitting ETIM
- Polyamide (PA)
- Operating Temperature - °C
- -50 °C to +135 °C
- Specifications
- UL-Recognized
More Information
- ETIM 6.0
- EC001176
- ETIM 7.0 Key
- EC001176
Product Dimensions
- A/F Gland Body (A/F5)
- 20mm
- A/F Thread (A/F2)
- 20mm
- Height (H)
- 24mm
- Length (L)
- 72mm
- Min. Bore Size (B)
- 10mm
- Nominal ∅
- 1/2"
- 13mm
- NW ∅
- 10mm
- Outside ∅ max (OD max.)
- 24mm
- Thread Length (TL)
- 12mm
- Thread Size
- M16
