Description

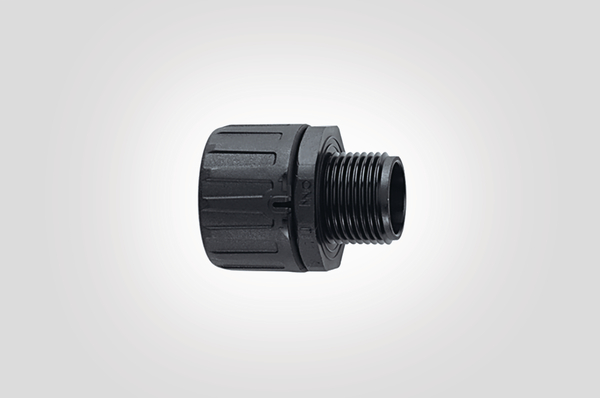

Straight external thread.Fittings with fixed external thread
HellermannTyton 166-21037 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Brass Thread (Y/N)
- No
- Colour
- Black (BK)
- Package Quantity per
- bag
- Pack Cont.
- 10pcs.
- PART DESCRIPTION
- HG18-S-PG13-PA66-BK
- Product Family
- HG-S Straight fitting, IP66
- Product Group
- Fittings with fixed external thread
- Short Description
- Straight fitting with external thread IP66 ø18mm PG13
- Strain Relief Function (Y/N)
- No
- Swivel Thread (Y/N)
- No
- Thread type
- not applicable
- Type of connection
- Snap-connection
- Variant
- Straight
Logistics and Packaging
- EAN / GTIN
- 4031026311029
- Packaging 1 - Height (m)
- 0.029m
- Packaging 1 - Length (m)
- 0.3m
- Packaging 1 - Qty
- 10
- Packaging 1 - Type
- bag
- Packaging 1 - Volume (m³)
- 0.00139m³
- Packaging 1 - Weight (kg)
- 0.106kg
- Packaging 1 - Width (m)
- 0.16m
- Weight
- 0.106kg
Material and Specifications
- ELV compliant (Article 4 - 2)
- YES
- Flammability
- UL 94 V2
- Halogenfree
- Yes
- Hazardous good
- No
- IP-Rating
- IP66
- Material
- Polyamide 6.6 (PA66)
- Material of fitting ETIM
- Polyamide (PA)
- Operating Temperature - °C
- -50 °C to +135 °C
- Specifications
- CSA-C22.2 No.227.3
- UL-File Number
- E325250
More Information
- ETIM 6.0
- EC001176
- ETIM 7.0 Key
- EC001176
Product Dimensions
- Length (L)
- 40mm
- Lowest inner diameter
- 16.5mm
- Min. Bore Size (B)
- 16.5mm
- Nominal ∅
- 3-15/16"
- 18mm
- NW ∅
- 14mm
- Outside ∅ max (OD max.)
- 32mm
- Thread Length (TL)
- 10mm
- Thread Size
- PG13.5
