Description

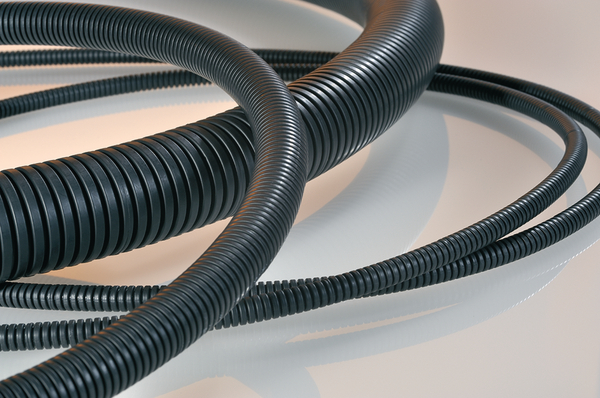

Standard weight conduit made of Polypropylen is used in machine building, electrical installations and buildings, often in concrete or plaster.Non-Metallic Conduits
HellermannTyton 166-11905 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Colour
- Black (BK)
- Conduit Model
- Plastic corrugated
- Features and Benefits
- 1. If the fitting has been used before, be sure that the slit points to the “on” position. To assemble the fitting, push it on to the end of the conduit as far as possible without forcing it and twist it slightly. The fitting is now securely locked. 2. To remove the fitting, insert a small screw driver into the slit. 3. Move the handle of the screwdriver towards the “off” position. The capnut will rotate slightly. The locking mechanism is now released. 4. Remove the screwdriver. 5. Manually rotate the capnut further towards the “off” position as far as possible. 6. Simply remove the fitting from the end of the conduit.
- Pack Cont.
- 50m
- PART DESCRIPTION
- HG-PP25-PP-BK
- Pitch Type
- coarse
- Product Family
- HG-PP PP Conduit
- Product Group
- Non-Metallic Conduits
- Short Description
- Standard weight conduit PP ø 25mm reel 50m
Logistics and Packaging
- EAN / GTIN
- 4031026325484
- Packaging 1 - Height (m)
- 0.25m
- Packaging 1 - Length (m)
- 0.45m
- Packaging 1 - Qty
- 50
- Packaging 1 - Type
- reel
- Packaging 1 - Volume (m³)
- 0.05063m³
- Packaging 1 - Weight (kg)
- 3.0kg
- Packaging 1 - Width (m)
- 0.45m
- Packaging 4 - Height (m)
- 1.3m
- Packaging 4 - Length (m)
- 1.2m
- Packaging 4 - Qty
- 1000
- Packaging 4 - Type
- pallet
- Packaging 4 - Volume (m³)
- 1.248m³
- Packaging 4 - Weight (kg)
- 81.0kg
- Packaging 4 - Width (m)
- 0.8m
- Reel Length
- 50m
- Weight
- 3.0kg
Material and Specifications
- ELV compliant (Article 4 - 2)
- YES
- Flammability
- self-extinguishing according to EN IEC 61386
- Hazardous good
- No
- IP-Rating
- IP66 (in conjunction with HG fittings)
- Material
- Polypropylene (PP)
- Operating Temperature - °C
- -20 °C to +90 °C
- Specifications
- IEC 61386
- UV-Resistant (Yes/No)
- Yes
More Information
- ETIM 6.0
- EC001175
- ETIM 7.0 Key
- EC001175
Product Dimensions
- Diameter (D)
- 19.1mm
- Inside Ø (ID)
- 19.1mm
- Min. Bending Radius (R)
- 50mm
- Nominal ∅
- 1"
- 25mm
- NW ∅
- 22mm
- Outside Ø (OD)
- 25.0mm
- Weight
- 52g/m
