HellermannTyton 166-11405
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

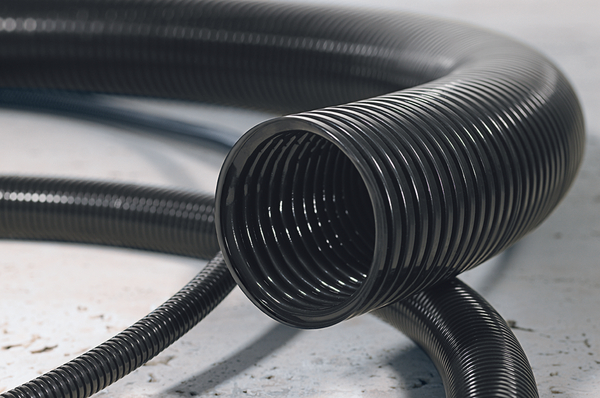

Flame-retardant standard weight corrugated flexible conduit is used where high fire-protection is required, including railway vehicles, tunnels and underground stations as well as public buildings.Non-Metallic Conduits
HellermannTyton 166-11405 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Colour
- Black (BK)
- Conduit Model
- Plastic corrugated
- Features and Benefits
- 1. If the fitting has been used before, be sure that the slit points to the “on” position. To assemble the fitting, push it on to the end of the conduit as far as possible without forcing it and twist it slightly. The fitting is now securely locked. 2. To remove the fitting, insert a small screw driver into the slit. 3. Move the handle of the screwdriver towards the “off” position. The capnut will rotate slightly. The locking mechanism is now released. 4. Remove the screwdriver. 5. Manually rotate the capnut further towards the “off” position as far as possible. 6. Simply remove the fitting from the end of the conduit.
- Package Quantity per
- reel
- Pack Cont.
- 50m
- PART DESCRIPTION
- HG-FR34-PA6FR-BK
- Pitch Type
- coarse
- Product Family
- HG-FR PA6 Flame Retardant
- Product Group
- Non-Metallic Conduits
- Short Description
- Flame-retardant standard weight corrugated flexible conduit PA6 ø34mm reel 50m
Logistics and Packaging
- EAN / GTIN
- 4031026302614
- Packaging 1 - Height (m)
- 0.285m
- Packaging 1 - Length (m)
- 0.56m
- Packaging 1 - Qty
- 50
- Packaging 1 - Type
- reel
- Packaging 1 - Volume (m³)
- 0.08938m³
- Packaging 1 - Weight (kg)
- 6.75kg
- Packaging 1 - Width (m)
- 0.56m
- Reel Length
- 50m
- Weight
- 6.75kg
Material and Specifications
- ELV compliant (Article 4 - 2)
- YES
- EN 45545-2 Results
- R22 HL3, R23 HL3
- EN61386 Classification
- 24244066-210
- Flammability
- UL 94 V0
- Halogenfree
- Yes
- Hazardous good
- No
- IP-Rating
- IP66 (in conjunction with HG fittings)
- Material
- Polyamide 6, flame retardant (PA6FR)
- Operating Temperature - °C
- -40 °C to +120 °C
- Operating Temperature Moving
- -20 °C to +100 °C
- Specifications
- ANSI/UL 1695, BS EN 45545-2:2013+A1:2015, BS EN 61386-23:2004, CSA-C22.2 No.227.3, EN 45545-2:2013+A1:2015
- UL-File Number
- E325250
- UV-Resistant (Yes/No)
- Yes
More Information
- ETIM 6.0
- EC001175
- ETIM 7.0 Key
- EC001175
Product Dimensions
- Diameter (D)
- 28.1mm
- Inside Ø (ID)
- 28.1mm
- Length (L)
- 50m
- Min. Bending Radius (R)
- 60mm
- Min.Tensile Strength
- 600N
- Nominal ∅
- 1-5/16"
- 34mm
- NW ∅
- 29mm
- Outside Ø (OD)
- 34.5mm
- Weight
- 135g/m
