HellermannTyton 157-00040
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

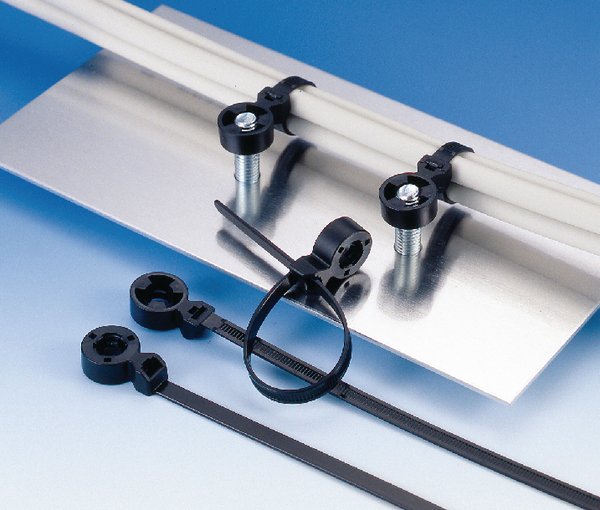

Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.1-Piece Fixing Ties for Weld Studs
HellermannTyton 157-00040 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Application Tool
- MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9
- Colour
- Black (BK)
- Fixation Method
- Weld Stud Fixing
- Identification Plate Position
- none
- Package Quantity per
- bag
- Pack Cont.
- 100pcs.
- PART DESCRIPTION
- T50SOSSBD-M10-PA66HSW-BK
- Product Family
- T50SOSSBD for cable routing alongside and below the stud
- Product Group
- 1-Piece Fixing Ties for Weld Studs
- Releasable Closure (Yes/No)
- No
- Short Description
- 1-Piece fixing tie 175x5.7 mm, for weld studs, PA66HSW, black
- Tie Closure
- plastic pawl
- Variant
- Outside Serrated
Logistics and Packaging
- EAN / GTIN
- 4944387950892
- Packaging 1 - Height (m)
- 0.043m
- Packaging 1 - Length (m)
- 0.176m
- Packaging 1 - Qty
- 100
- Packaging 1 - Type
- bag
- Packaging 1 - Volume (m³)
- 0.00082m³
- Packaging 1 - Weight (kg)
- 0.31kg
- Packaging 1 - Width (m)
- 0.108m
- Packaging 2 - Type
- carton
- Packaging 3 - Height (m)
- 0.345m
- Packaging 3 - Length (m)
- 0.455m
- Packaging 3 - Qty
- 3000
- Packaging 3 - Type
- carton
- Packaging 3 - Volume (m³)
- 0.0494m³
- Packaging 3 - Weight (kg)
- 9.74kg
- Packaging 3 - Width (m)
- 0.315m
- Packaging 4 - Height (m)
- 1.179m
- Packaging 4 - Length (m)
- 1.2m
- Packaging 4 - Qty
- 45000
- Packaging 4 - Type
- pallet
- Packaging 4 - Volume (m³)
- 1.132m³
- Packaging 4 - Weight (kg)
- 167.1kg
- Packaging 4 - Width (m)
- 0.8m
- Weight
- 0.31kg
Material and Specifications
- Cable Tie
- Polyamide 6.6, heat and UV-resistant (PA66HSW)
- ELV compliant (Article 4 - 2)
- YES
- Flammability
- UL 94 V2
- Hazardous good
- No
- Material
- Polyamide 6.6, heat and UV-resistant (PA66HSW)
- Operating Temperature - °C
- -40 °C to +110 °C
More Information
- ETIM 6.0
- EC000046
- ETIM 7.0 Key
- EC000046
- UNSPSC Key
- 39121717
Product Dimensions
- Bundle ∅ max.
- 30.0mm
- Bundle ∅ min.
- 3.0mm
- Length (L)
- 175.0mm
- Min.Tensile Strength
- 150N
- Stud ∅
- M10
- Thickness (T)
- 1.3mm
- Width (W)
- 5.7mm
