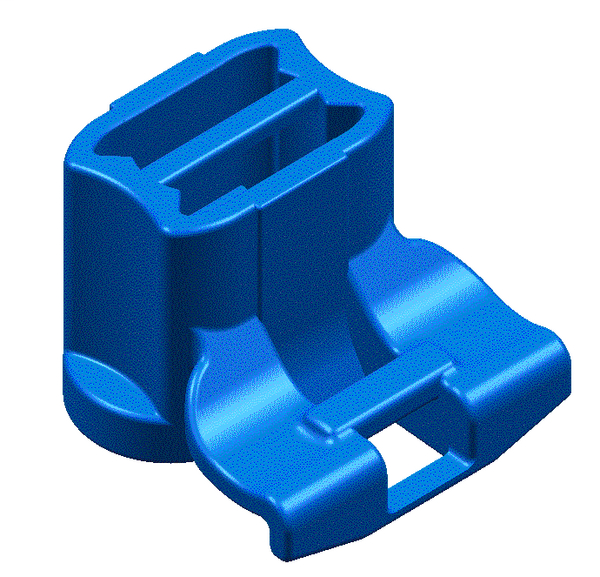

HellermannTyton 156-05906
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
HellermannTyton 156-05906 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Anti rotation (Yes / No)
- NO
- Application Tool
- MK20, MK3PNSP2, MK3SP, MK7P, EVO7, MK7HT, MK6, MK9, MK21
- Colour
- Black (BK)
- Fixation Method (FF)
- Weld Stud Fixing
- Identification Plate Position
- none
- Manufacturer Type
- T50ROSSB5CSD PA66HS BK 500
- No. of sides for tie attachment
- 2
- Product Group
- 2-Piece Fixing Ties for Weld , moveable
- Tie Closure
- plastic pawl
- Variant
- Outside Serrated
Logistics and Packaging
- Carton Quantity
- 2000 pcs.
- EAN / GTIN
- 4031026232072
- Pack Cont.
- 500 pcs.
- Quantity of Europallet
- 24000 pcs.
- Quantity per
- Bag
- Weight
- 3.4 kg
Material and Specifications
- Cable Tie
- Polyamide 6.6, heat stabilised (PA66HS)
- ELV compliant Dir. Art. 4 (2)
- YES
- Flammability
- UL94 V2
- Foot Part
- Polyamide 6.6, heat stabilised (PA66HS)
- Hazardous goods
- No
- Material
- Polyamide 6.6, heat stabilised (PA66HS)
- Operating Temperature
- -40 °C to +105 °C, (+145 °C, 500 h)
- Operating Temperature Foot Part (Metric)
- -40 °C to +105 °C, (+145 °C, 500 h)
- REACH compliant Regu. Art. 33
- YES
More Information
- ETIM 5.0
- EC000046
- ETIM 6.0
- EC000046
Product Dimensions
- Bundle ∅ max.
- 45.0 mm
- Bundle ∅ min.
- 1.5 mm
- Height (H)
- 1.3 mm
- Height (H2)
- 17.2 mm
- Length (L)
- 200 mm
- Length (L2)
- 22.0 mm
- Max Stud Length
- 15.5 mm
- Min Stud Length
- 14.2 mm
- Min.Tensile Strength (N)
- 225 N
- Stud ∅
- 5.0 mm
- Width (W)
- 4.6 mm
- Width (W2)
- 23.1 mm
