HellermannTyton 156-01464
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
HellermannTyton 156-01464 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Application Tool
- MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9
- Colour
- Black (BK)
- Description

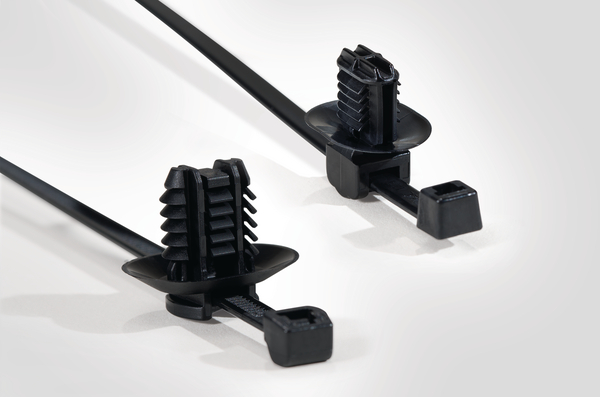

- These two-piece fixings are supplied ready assembled and offer a simple and versatile method of bundling and fixing cables. The fir-tree base will easily push into pre-punched holes in panels or threaded, blind, holes and offers a very secure fixing. The two-piece design enables the head of the tie to be orientated to the required position to ease assembly, whilst the 'disc' on the top of the fir tree covers the hole and minimises the ingress of water and dirt.
- Fixation Method
- Fir Tree for oval holes
- Identification Plate Position
- none
- Package Quantity per
- bag
- Pack Cont.
- 500pcs.
- PART DESCRIPTION
- T50RFTOVAL-A-PA66HS/PA66HIRHS-BK
- Product Family
- 2-Piece Fixing Ties with Fir Tree, with disc, for oval holes
- Product Group
- 2-Piece Fixing Ties with Fir Tree, with Disc
- Tie Closure
- plastic pawl
Logistics and Packaging
- EAN / GTIN
- 4031026515915
Material and Specifications
- Cable Tie
- Polyamide 6.6, heat stabilised (PA66HS)
- Foot Part
- Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
- Material
- Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
More Information
- ETIM 6.0
- EC000046
- ETIM 7.0 Key
- EC000046
Product Dimensions
- Bundle ∅ max.
- 50.0mm
- Disc ∅
- 17.6 x 23.6mm
- for Hole ∅ (FH)
- 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
- for Panel Thickness min - max
- 0.6 - 5 mm
- Length (L)
- 200.0mm
- Min.Tensile Strength
- 225N
- Width (W)
- 4.6mm
