Description
Used in the automotive and truck industry for harness fixing in the engine body, these parts offer solutions in many other industrial applications with difficult environment.2-Piece Fixing Ties for Heavy Duty Applications, for Screws or Bolts
HellermannTyton 156-00406 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Application Tool
- MK6, MK9P, MK21, EVO9, EVO9HT
- Colour
- Black (BK)
- Fixation Method
- Fixing hole
- For Screw Fixing
- YES
- Identification Plate Position
- none
- Mounting Screw Type
- M6
- Package Quantity per
- bag
- Pack Cont.
- 100pcs.
- PART DESCRIPTION
- T120RHDM6-PA66HIRHS-BK
- Product Family
- HDM6-Series for M6-Screws
- Product Group
- 2-Piece Fixing Ties for Heavy Duty Applications, for Screws or Bolts
- Short Description
- 2-Piece fixing tie 155x4.7 mm, for screws, PA66HS/PA66HIRHS, black
- Tie Closure
- plastic pawl
- Variant
- Inside Serrated
Logistics and Packaging
- EAN / GTIN
- 4031026426587
- Packaging 1 - Height (m)
- 0.109m
- Packaging 1 - Length (m)
- 0.4m
- Packaging 1 - Qty
- 100
- Packaging 1 - Type
- bag
- Packaging 1 - Volume (m³)
- 0.01177m³
- Packaging 1 - Weight (kg)
- 1.036kg
- Packaging 1 - Width (m)
- 0.27m
- Packaging 3 - Height (m)
- 0.25m
- Packaging 3 - Length (m)
- 0.595m
- Packaging 3 - Qty
- 600
- Packaging 3 - Type
- carton
- Packaging 3 - Volume (m³)
- 0.0595m³
- Packaging 3 - Weight (kg)
- 6.9648kg
- Packaging 3 - Width (m)
- 0.4m
- Packaging 4 - Height (m)
- 1.145m
- Packaging 4 - Length (m)
- 1.2m
- Packaging 4 - Qty
- 9600
- Packaging 4 - Type
- pallet
- Packaging 4 - Volume (m³)
- 1.099m³
- Packaging 4 - Weight (kg)
- 132.437kg
- Packaging 4 - Width (m)
- 0.8m
- Weight
- 1.036kg
Material and Specifications
- Cable Tie
- Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
- ELV compliant (Article 4 - 2)
- YES
- Flammability
- UL 94 HB
- Foot Part
- Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
- Hazardous good
- No
- Material
- Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
- Operating Temperature - °C
- -40 °C to +105 °C
- Operating Temperature Foot Part (Metric)
- -40 °C to +105 °C
More Information
- ETIM 6.0
- EC000046
- ETIM 7.0 Key
- EC000046

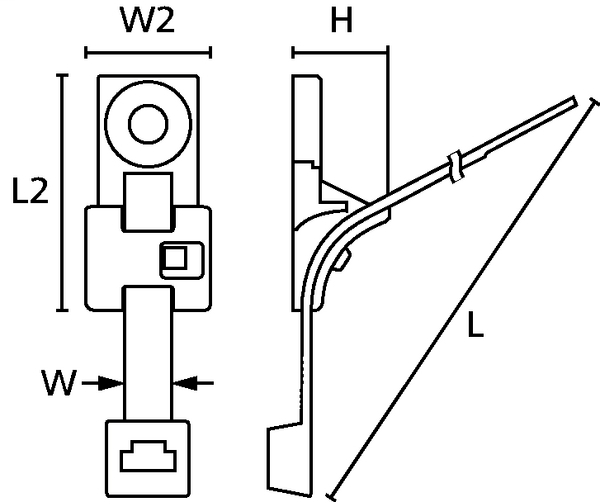

Product Dimensions
- Bundle ∅ max.
- 105mm
- Bundle ∅ min.
- 15.0mm
- Height (H)
- 16.0mm
- Length (L)
- 390.0mm
- Length (L2)
- 37.5mm
- Min.Tensile Strength
- 535N
- Strap Width max. (G)
- 0.31
- 7.8mm
- Width (W)
- 7.6mm
- Width (W2)
- 20.0mm
