HellermannTyton 156-00382

Base Data

• Application Tool
  • MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9
• Colour
  • Grey (GY)
• Description

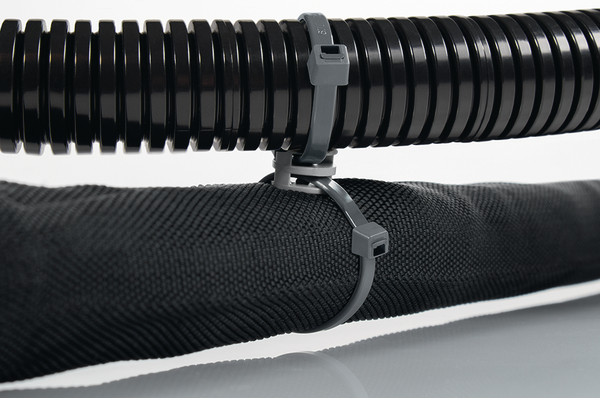

  • The Coupler is the simple way to connect two cable ties for a parallel routing of two bundles. His special design allows the ties 90 degrees of rotation. This is ideal for all applications where the cable, pipe or hose should move flexible in relation to the fixing point. The Coupler can be used with one or two cable ties. This allows easily subsequent installation or replacements of further cables, pipes or hose.
• Features and Benefits
  • The Coupler is an article to connect two cable ties maximum for parallel bundling of tubes, harnesses or cables. Its design enables the cable ties to rotate up to 90° and allows flexible installations.
• Identification Plate Position
  • none
• Package Quantity per
  • bag
• Pack Cont.
  • 500pcs.
• PART DESCRIPTION
  • T50RCOUPLER-PA46-GY
• Product Family
  • T50RCoupler for max. bundle diameter 2 x 47.0 mm
• Product Group
  • 2-Piece Fixing Ties for parallel separation
• Short Description
  • 2-Piece fixing tie 145x3.4 mm, for parallel separation, PEEK, black
• Tie Closure
  • plastic pawl
• Variant
  • Inside Serrated

Logistics and Packaging

• EAN / GTIN
  • 4031026436081
• Packaging 1 - Qty
  • 500
• Packaging 1 - Type
  • bag
• Packaging 1 - Weight (kg)
  • 1.64kg
• Packaging 3 - Height (m)
  • 0.15m
• Packaging 3 - Length (m)
  • 0.39m
• Packaging 3 - Qty
  • 1000
• Packaging 3 - Type
  • carton
• Packaging 3 - Volume (m³)
  • 0.0176m³
• Packaging 3 - Weight (kg)
  • 3.649kg
• Packaging 3 - Width (m)
  • 0.3m
• Packaging 4 - Height (m)
  • 1.194m
• Packaging 4 - Length (m)
  • 1.2m
• Packaging 4 - Qty
  • 56000
• Packaging 4 - Type
  • pallet
• Packaging 4 - Volume (m³)
  • 1.146m³
• Packaging 4 - Weight (kg)
  • 225.344kg
• Packaging 4 - Width (m)
  • 0.8m
• Quantity of UK Pallet
  • 50000
• Weight
  • 1.64kg

Material and Specifications

• Cable Tie
  • Polyamide 4.6 (PA46)
• ELV compliant (Article 4 - 2)
  • YES
• Flammability
  • UL 94 V2
• Foot Part
  • Polyamide 4.6 (PA46)
• Hazardous good
  • No
• Material
  • Polyamide 4.6 (PA46)
• Operating Temperature - °C
  • -40 °C to +150 °C
• Operating Temperature Foot Part (Metric)
  • -40 °C to +130 °C, (+150 °C, 5000 h; +195 °C, 500 h)

More Information

• ETIM 6.0
  • EC000046
• ETIM 7.0 Key
  • EC000046

Product Dimensions

• Bundle ∅ max.
  • 47.0mm
• Bundle ∅ min.
  • 2.0mm
• Length (L)
  • 202mm
• ∅ max. 1. loop
  • 50.0mm
• ∅ max. 2. loops
  • 50.0mm
• Min.Tensile Strength
  • 225N
• Strap Width max. (G)
  • 0.185
  • 4.7mm
• Width (W)
  • 4.6mm
