HellermannTyton 156-00380
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
These cable ties and Edge Clip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel buidling and electrical industry.2-Piece Fixing Ties for Edges, twistable
HellermannTyton 156-00380 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Application Tool
- MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9
- Colour
- Black (BK)
- Description

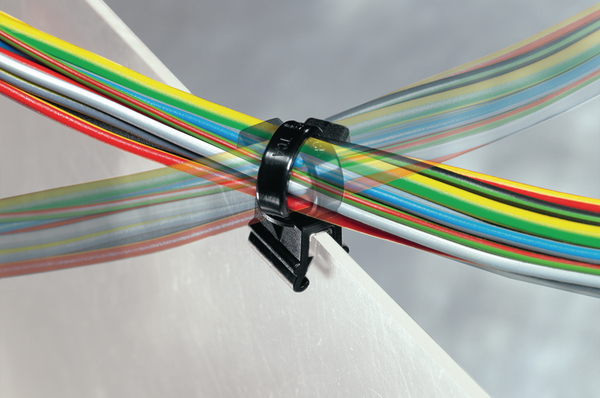

- These EdgeClips are also mounted simply by pushing them onto an edge. A twistable EdgeClip is the ideal solution whenever flexible routing of cable bundles is required. The cable route can even be modified post-installation. The clips are available in 90° and 360° models for use with different types of cable tie. On the CBT30MR the bundle runs at the side of the clip, on the CBTO50R it runs over the centre of the clip.
- Fixation Method
- Edge Clips with tie
- Identification Plate Position
- none
- Package Quantity per
- carton
- Pack Cont.
- 1000pcs.
- PART DESCRIPTION
- CBTOS50RSTUD5-PA66HS/PA66HIRHS-BK
- Product Family
- CBTOS50RStud5 for max. bundle diameter 47.0 mm, rotatable 90 °, for parallel routing
- Product Group
- 2-Piece Fixing Ties for Edges, twistable
- Short Description
- 2-Piece fixing tie 100x2.45 mm, for edges, PA66HS/PA66HIRHS, black
- Variant
- Inside Serrated
Logistics and Packaging
- EAN / GTIN
- 4031026333038
- Packaging 3 - Height (m)
- 0.2m
- Packaging 3 - Length (m)
- 0.395m
- Packaging 3 - Qty
- 1000
- Packaging 3 - Type
- carton
- Packaging 3 - Volume (m³)
- 0.0237m³
- Packaging 3 - Weight (kg)
- 6.42kg
- Packaging 3 - Width (m)
- 0.3m
- Packaging 4 - Height (m)
- 1.144m
- Packaging 4 - Length (m)
- 1.2m
- Packaging 4 - Qty
- 40000
- Packaging 4 - Type
- pallet
- Packaging 4 - Volume (m³)
- 1.098m³
- Packaging 4 - Weight (kg)
- 277.8kg
- Packaging 4 - Width (m)
- 0.8m
- Quantity of UK Pallet
- 30000
- Weight
- 6kg
Material and Specifications
- Cable Tie
- Polyamide 6.6, heat stabilised (PA66HS)
- ELV compliant (Article 4 - 2)
- YES
- Flammability
- UL 94 HB
- Foot Part
- Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
- Hazardous good
- No
- Material
- Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
- Operating Temperature - °C
- -40 °C to +105 °C
- Operating Temperature Foot Part (Metric)
- -40 °C to +105 °C, (+145 °C, 500 h)
More Information
- ETIM 6.0
- EC000046
- ETIM 7.0 Key
- EC000046
Product Dimensions
- Bundle ∅ max.
- 47.0mm
- Bundle ∅ min.
- 2.0mm
- for Panel Thickness min - max
- 1 - 3 mm
- 0 - 0.1 "
- Length (L)
- 200mm
- Min.Tensile Strength
- 225N
- Strap Width max. (G)
- 4.6mm
- 0.18
- Width (W)
- 4.6mm
