Description
2-Piece Fixing Ties with Pipe Clip, twistable 360°
HellermannTyton 156-00318 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Application Tool
- MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9
- Colour
- Black (BK), Natural (NA)
- Features and Benefits

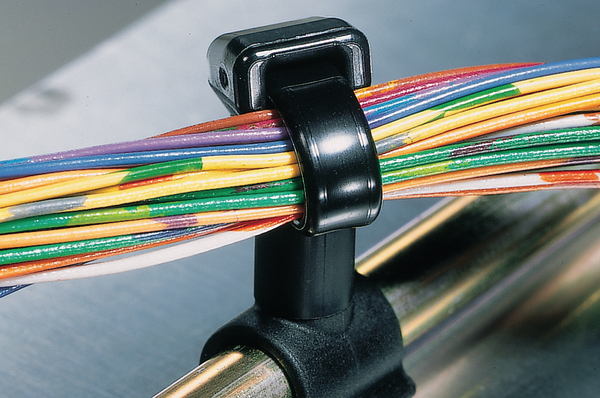

- The simple to use inside serrated fixing tie series provides the opportunity to attach a wire or hose to an existing harness. Offering the facility of a full 360 degrees of rotation, the wire/hose can be oriented in any direction in realtion to the main harness.Ideally suited for any application in which the wire or hose can move in relation to the fixing point.
- Fixation Method
- Omega Clips
- Identification Plate Position
- none
- Package Quantity per
- bag
- Pack Cont.
- 500pcs.
- PART DESCRIPTION
- T50SVC4S-PA66HS/PP-BK/NA
- Product Group
- 2-Piece Fixing Ties with Pipe Clip, twistable 360°
Logistics and Packaging
- EAN / GTIN
- 4031026285948
- Packaging 1 - Height (m)
- 0.2m
- Packaging 1 - Length (m)
- 0.395m
- Packaging 1 - Qty
- 500
- Packaging 1 - Type
- bag
- Packaging 1 - Volume (m³)
- 0.03555m³
- Packaging 1 - Weight (kg)
- 0.7295kg
- Packaging 1 - Width (m)
- 0.45m
- Packaging 3 - Height (m)
- 0.368m
- Packaging 3 - Length (m)
- 0.584m
- Packaging 3 - Qty
- 7000
- Packaging 3 - Type
- carton
- Packaging 3 - Volume (m³)
- 0.083m³
- Packaging 3 - Weight (kg)
- 11.033kg
- Packaging 3 - Width (m)
- 0.386m
- Packaging 4 - Height (m)
- 1.249m
- Packaging 4 - Length (m)
- 1.2m
- Packaging 4 - Qty
- 84000
- Packaging 4 - Type
- pallet
- Packaging 4 - Volume (m³)
- 1.199m³
- Packaging 4 - Weight (kg)
- 153.48kg
- Packaging 4 - Width (m)
- 0.8m
- Weight
- 0.697kg
Material and Specifications
- ELV compliant (Article 4 - 2)
- YES
- Flammability
- UL 94 HB
- Hazardous good
- No
- Material
- Polyamide 6.6, heat stabilised (PA66HS), Polypropylene (PP)
- Operating Temperature - °C
- -40 °C to +85 °C
More Information
- ETIM 6.0
- EC000046
- ETIM 7.0 Key
- EC000046
- UNSPSC Key
- 39121703
Product Dimensions
- Attach to Diameter
- 0.15"-0.17"
- Attach to Ø
- 3.8 - 4.2
- Bundle ∅ max.
- 35.0mm
- Bundle ∅ min.
- 2.0mm
- for Hole ∅ (FH)
- 3.81 - 4.32 mm
- Length (L)
- 155mm
- Min.Tensile Strength
- 225N
- Width (W)
- 4.7mm
