Description

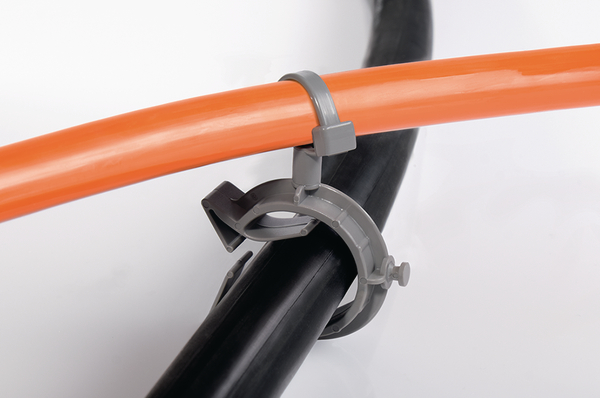

These inside serrated fixing ties provide the opportunity to attach a wire
or hose to an existing harness. Offering a full 360 degrees rotation, the
wire/hose can be oriented in any direction in relation to the main harness.2-Piece Fixing Ties with Pipe Clip, twistable 360°
or hose to an existing harness. Offering a full 360 degrees rotation, the
wire/hose can be oriented in any direction in relation to the main harness.2-Piece Fixing Ties with Pipe Clip, twistable 360°
HellermannTyton 156-00272 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Application Tool
- MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9
- Colour
- Black (BK)
- Fixation Method
- Omega Clips
- Identification Plate Position
- none
- Package Quantity per
- bag
- Pack Cont.
- 250pcs.
- PART DESCRIPTION
- T50SVCOC25-31-PA66HS/PA66HIRHS-BK
- Product Group
- 2-Piece Fixing Ties with Pipe Clip, twistable 360°
- Tie Closure
- plastic pawl
Logistics and Packaging
- EAN / GTIN
- 4031026272153
- Packaging 1 - Height (m)
- 0.2m
- Packaging 1 - Length (m)
- 0.47m
- Packaging 1 - Qty
- 250
- Packaging 1 - Type
- bag
- Packaging 1 - Volume (m³)
- 0.05123m³
- Packaging 1 - Weight (kg)
- 1.4628kg
- Packaging 1 - Width (m)
- 0.545m
- Packaging 3 - Height (m)
- 0.368m
- Packaging 3 - Length (m)
- 0.584m
- Packaging 3 - Qty
- 1250
- Packaging 3 - Type
- carton
- Packaging 3 - Volume (m³)
- 0.083m³
- Packaging 3 - Weight (kg)
- 8.134kg
- Packaging 3 - Width (m)
- 0.386m
- Packaging 4 - Height (m)
- 1.248m
- Packaging 4 - Length (m)
- 1.2m
- Packaging 4 - Qty
- 15000
- Packaging 4 - Type
- pallet
- Packaging 4 - Volume (m³)
- 1.198m³
- Packaging 4 - Weight (kg)
- 118.62kg
- Packaging 4 - Width (m)
- 0.8m
- Weight
- 1.418kg
Material and Specifications
- ELV compliant (Article 4 - 2)
- YES
- Flammability
- UL 94 HB
- Hazardous good
- No
- Material
- Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
- Operating Temperature - °C
- -40 °C to +105 °C
More Information
- ETIM 6.0
- EC000046
- ETIM 7.0 Key
- EC000046
- UNSPSC Key
- 39121717
Product Dimensions
- Attach to Diameter
- 0.98 ″-1.22 ″
- Attach to Ø
- 25.0 - 31.0
- Bundle ∅ max.
- 35.0mm
- Bundle ∅ min.
- 2.0mm
- ∅ D max.
- 1.2"
- ∅ D min.
- 0.98"
- Length (L)
- 155mm
- Min.Tensile Strength
- 222N
- Thickness (T)
- 1.35mm
- Width (W)
- 4.7mm
