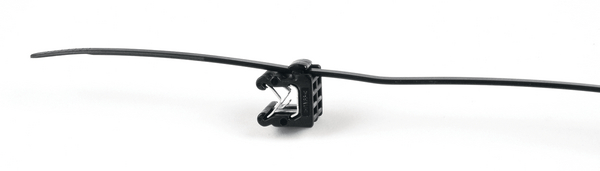

HellermannTyton 156-00010
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel buidling and electrical industry.2-Piece Fixing Ties for Edges, 1.0 - 3.0 mm, Side Fixing
HellermannTyton 156-00010 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Anti rotation (Yes / No)
- YES
- Application Tool
- MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO7SP, EVO9
- Colour
- Black (BK)
- Description
- Available with either 'inside' or 'outside' serrated ties these two piece assemblies simply push onto an edge with thicknesses from 1.0 to 3.0mm. The high 'pull off' forces are due to the integrated metal clamp. Different Edge Clip variations are available. One version allows for cables to run parallel to the edge, whilst another allows for installation at 90 degrees to the edge. The clip is simply pushed on by hand and held firmly in place by the integrated metal clamp. No fixing hole is necessary. Combined with the outside serrated (OS) ties, specially designed to protect cables from chafing and wear, the Edge Clip family provides an excellent fastening solution.
- Fixation Method
- EdgeClip, sideway, assembled, 2 piece
- Identification Plate Position
- none
- No. of sides for tie attachment
- 2
- Package Quantity per
- bag
- Pack Cont.
- 500pcs.
- PART DESCRIPTION
- T50ROSEC21-PA66HS/PA66HIRHS-BK
- Product Family
- EdgeClip-Family
- Product Group
- 2-Piece Fixing Ties for Edges, 1.0 - 3.0 mm, Side Fixing
- Releasable Closure (Yes/No)
- No
- Short Description
- 2-Piece Fixing Tie 200x4.6 for Edges 1-3 mm HS-black
- Variant
- Outside Serrated
Logistics and Packaging
- EAN / GTIN
- 4031026240619
- Packaging 1 - Height (m)
- 0.05m
- Packaging 1 - Length (m)
- 0.12m
- Packaging 1 - Qty
- 500
- Packaging 1 - Type
- bag
- Packaging 1 - Volume (m³)
- 0.00186m³
- Packaging 1 - Weight (kg)
- 1.474664kg
- Packaging 1 - Width (m)
- 0.31m
- Packaging 3 - Height (m)
- 0.368m
- Packaging 3 - Length (m)
- 0.584m
- Packaging 3 - Qty
- 4000
- Packaging 3 - Type
- carton
- Packaging 3 - Volume (m³)
- 0.083m³
- Packaging 3 - Weight (kg)
- 12.617312kg
- Packaging 3 - Width (m)
- 0.386m
- Packaging 4 - Height (m)
- 1.249m
- Packaging 4 - Length (m)
- 1.2m
- Packaging 4 - Qty
- 48000
- Packaging 4 - Type
- pallet
- Packaging 4 - Volume (m³)
- 1.199m³
- Packaging 4 - Weight (kg)
- 172.44kg
- Packaging 4 - Width (m)
- 0.8m
- Weight
- 1.438kg
Material and Specifications
- Cable Tie
- Polyamide 6.6, heat stabilised (PA66HS)
- ELV compliant (Article 4 - 2)
- YES
- Flammability
- UL 94 HB
- Foot Part
- Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
- Hazardous good
- No
- Material
- Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
- Operating Temperature - °C
- -40 °C to +105 °C
- Operating Temperature Foot Part (Metric)
- -40 °C to +105 °C
More Information
- ETIM 6.0
- EC000046
- ETIM 7.0 Key
- EC000046
- UNSPSC Key
- 39121703
Product Dimensions
- Bundle ∅ max.
- 45.0mm
- Bundle ∅ min.
- 1.0mm
- for Panel Thickness min - max
- 0 - 0.1 "
- 1 - 3 mm
- Height (H)
- 1.3mm
- Height (H2)
- 13.4mm
- Length (L)
- 200mm
- Length (L2)
- 15.0mm
- Min.Tensile Strength
- 225N
- Thickness (T)
- 1.3mm
- Width (W)
- 4.6mm
- Width (W2)
- 10.0mm
