HellermannTyton 155-04000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Article number: 155-04000
HellermannTyton 155-04000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Application 2
- Self-locking PC-Clips are available on request. Please contact us!
- Colour
- Black (BK)
- Description Short (BMEcat) (max. 150 characters)

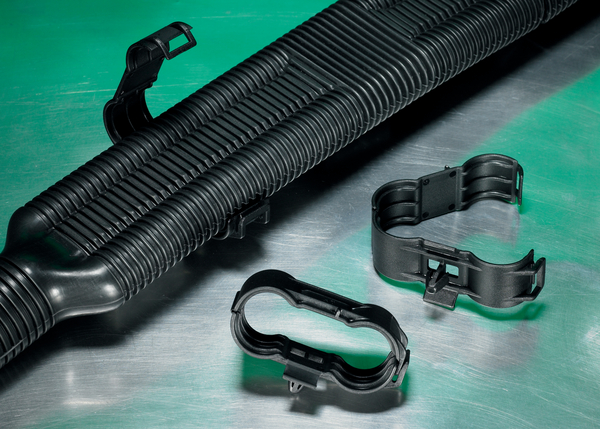

- Fixing element for corrugated tubing 33x22 mm, with arrowhead, high impact modified, heat stabilised, black
- GLOBAL PART NAME (auto set)
- RCC D24-PA66HIRHS-BK
- Package Quantity per
- bag
- Pack Cont.
- 100pcs.
- Product Group
- Fixing Elements for Corrugated Tubing, with Arrowhead
Logistics and Packaging
- EAN / GTIN
- 4031026214603
- Packaging 1 - Height (m)
- 0.3m
- Packaging 1 - Length (m)
- 0.625m
- Packaging 1 - Qty
- 100
- Packaging 1 - Type
- bag
- Packaging 1 - Volume (m³)
- 0.0825m³
- Packaging 1 - Weight (kg)
- 0.52kg
- Packaging 1 - Width (m)
- 0.44m
- Packaging 3 - Height (m)
- 0.368m
- Packaging 3 - Length (m)
- 0.584m
- Packaging 3 - Qty
- 2000
- Packaging 3 - Type
- carton
- Packaging 3 - Volume (m³)
- 0.083m³
- Packaging 3 - Weight (kg)
- 11.22kg
- Packaging 3 - Width (m)
- 0.386m
- Packaging 4 - Height (m)
- 1.249m
- Packaging 4 - Length (m)
- 1.2m
- Packaging 4 - Qty
- 24000
- Packaging 4 - Type
- pallet
- Packaging 4 - Volume (m³)
- 1.199m³
- Packaging 4 - Weight (kg)
- 155.64kg
- Packaging 4 - Width (m)
- 0.8m
- Weight
- 0.52kg
Material and Specifications
- ELV compliant (Article 4 - 2)
- YES
- Flammability
- UL 94 HB
- Hazardous goods
- No
- Material
- Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
- Operating Temperature - °C
- -40 °C to +105 °C
More Information
- ETIM 5.0
- EC000127
- ETIM 6.0
- EC000127
Product Dimensions
- Attach to Ø
- 24.0mm
- Disc ∅
- 22mm
- for Hole ∅ (FH)
- 6.2 x 12.2 mm
- for Panel Thickness min - max
- 0.7 - 2.5 mm
- Height (H)
- 33.0mm
- Length (L)
- 33.0mm
- Nominal ∅
- 24.0mm
- Width (W)
- 22.0mm
