HellermannTyton 151-42229
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

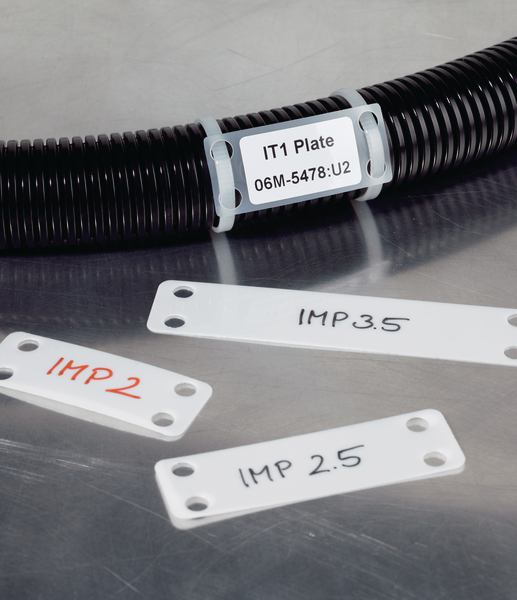

The IMP and IT range of marker plates are suitable for applying to large cable bundles before or after termination has taken place. The marker plates can also be riveted if required.
They are secured with cable ties of any length with a maximum width of 4.8 mm.
They can be written on by hand using either a black or red T82 indelible marker pen.Identification ties and plates for marking cable bundles
They are secured with cable ties of any length with a maximum width of 4.8 mm.
They can be written on by hand using either a black or red T82 indelible marker pen.Identification ties and plates for marking cable bundles
HellermannTyton 151-42229 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Colour
- White (WH)
- Fixation Method
- Others
- Identification Plate Position
- attached to bundle
- Mounting method
- Others
- Package Quantity per
- bag
- Pack Cont.
- 100pcs.
- PART DESCRIPTION
- IMP2-PA66-WH
- Product Family
- IMP and IT Plates
- Product Group
- Identification ties and plates for marking cable bundles
- Recommended Labels
- TAG28-16TD1
- Short Description
- Marking Plate 50.8x19.05 mm transparent
- Variant
- Other
- With label space
- Yes
Logistics and Packaging
- EAN / GTIN
- 4031026122939
- Packaging 1 - Height (m)
- 0.03m
- Packaging 1 - Length (m)
- 0.123m
- Packaging 1 - Qty
- 100
- Packaging 1 - Type
- bag
- Packaging 1 - Volume (m³)
- 0.00049m³
- Packaging 1 - Weight (kg)
- 0.05kg
- Packaging 1 - Width (m)
- 0.134m
- Weight
- 0.132lbs
- 0.05kg
Material and Specifications
- CSA Certified
- No
- ELV compliant (Article 4 - 2)
- YES
- Flammability
- UL 94 V2
- Halogenfree
- Yes
- Hazardous good
- No
- Material
- Polyamide 6.6 (PA66)
- Operating Temperature - °C
- -40 °C to +85 °C, (+105 °C, 500 h)
- UL Listed (US and Canada)
- No
- UL Recognized (US and Canada)
- No
More Information
- ETIM 6.0
- EC001530
- ETIM 7.0 Key
- EC001530
- UNSPSC Key
- 55121717
Product Dimensions
- Height (H)
- 19.05mm
- Length (L)
- 50.8mm
- Length (L2)
- 38.8mm
- Print Method
- Manual
- Strap Width max. (G)
- 4.80mm
- 0.18"
- Thickness (T)
- 0.4mm
- Width of printable area (metric)
- 38.90mm
- Width (W)
- 19.3mm
- Width (W2)
- 38.86mm
