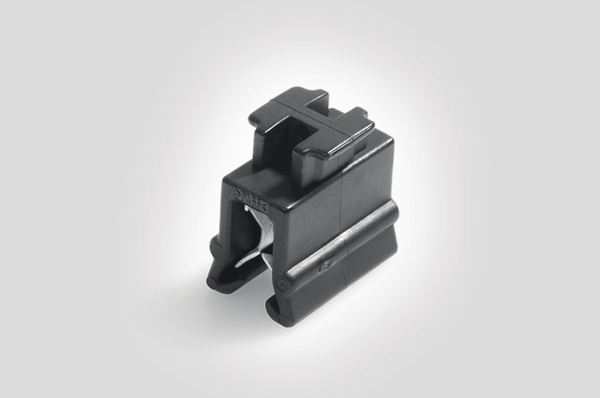

HellermannTyton 151-00472
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Connector Clips for Edges
HellermannTyton 151-00472 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Anti rotation (Yes / No)
- NO
- Colour
- Black (BK)
- Features and Benefits
- The silver-grey clamp, the heart of our EdgeClips, consists of double-tempered spring steel in accordance with DIN EN 10132-4 C75S. The spring steel gives the clamp both the necessary rigidity to provide high pull-off forces and also sufficient flexibility for various possible applications. The double coating is applied initially with a zinc plate system followed by inorganic surface sealing. Naturally, no chromium (VI) is used in this process. The clamp therefore complies with the current EU Directive 200/53/EC on end of life vehicles and the prohibition on heavy metals. The refined spring-steel clamp also fulfils the requirements for resistance to salt spray stipulated in DIN EN ISO 9227 NSS (min. 840 h without corrosion of base metal) and DIN EN ISO 6270-Z-CH (min. 720 h without corrosion of base material). This solution has therefore been approved by many OEMs for exposed installation locations, e.g. in engine compartments and the running-gear area.
- Fixation Method
- Edge Clips
- Package Quantity per
- bag
- Pack Cont.
- 1000pcs.
- PART DESCRIPTION
- EC JAE CC-PA66HIRHS-BK
- Product Group
- Connector Clips for Edges
Logistics and Packaging
- EAN / GTIN
- 4031026282619
- Packaging 1 - Height (m)
- 0.15m
- Packaging 1 - Length (m)
- 0.3m
- Packaging 1 - Qty
- 1000
- Packaging 1 - Type
- bag
- Packaging 1 - Volume (m³)
- 0.01845m³
- Packaging 1 - Weight (kg)
- 1.4848kg
- Packaging 1 - Width (m)
- 0.41m
- Packaging 3 - Height (m)
- 0.368m
- Packaging 3 - Length (m)
- 0.584m
- Packaging 3 - Qty
- 10000
- Packaging 3 - Type
- carton
- Packaging 3 - Volume (m³)
- 0.083m³
- Packaging 3 - Weight (kg)
- 15.668kg
- Packaging 3 - Width (m)
- 0.386m
- Packaging 4 - Height (m)
- 1.249m
- Packaging 4 - Length (m)
- 1.2m
- Packaging 4 - Qty
- 120000
- Packaging 4 - Type
- pallet
- Packaging 4 - Volume (m³)
- 1.199m³
- Packaging 4 - Weight (kg)
- 209.04kg
- Packaging 4 - Width (m)
- 0.8m
- Weight
- 1.46kg
Material and Specifications
- ELV compliant (Article 4 - 2)
- YES
- Flammability
- UL 94 HB
- Hazardous good
- No
- Material
- Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
- Operating Temperature - °C
- -40 °C to +105 °C
More Information
- ETIM 6.0
- EC000449
- ETIM 7.0 Key
- EC000449
- UNSPSC Key
- 39121717
Product Dimensions
- for Panel Thickness min - max
- 1 - 3 mm
- Height (H)
- 15.8mm
- Length (L)
- 15.0mm
- Panel Thickness max.
- 1.0 - 3.0mm
- Width (W)
- 9.0mm
