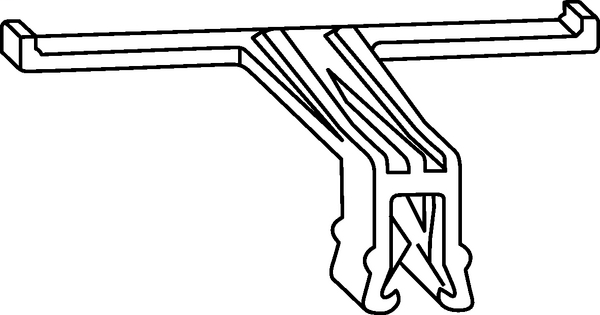

HellermannTyton 151-00022
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Originally designed for the automotive industry, these clips offer simple and easy methods of securing cables, hoses or pipes. These parts are used in the automotive industry for assembly of cable harnesses.Bundling Clips for Edges for Distance Routing
HellermannTyton 151-00022 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Colour
- Black (BK)
- Features and Benefits
- EdgeClip mounting solutions stand out for the ease with which they are fitted. The element is installed by pressing by hand onto a plastic or metal edge. EdgeClips 14 to 17 can be fastened to the cable bundle by integrating the bar using a cable tie or adhesive tape. The slotted and flexible bars are an ideal fit for the bundle. EdgeClips 30 additionally grants safe distance between bundle and edge.
- Fixation Method
- Edge Clips
- Package Quantity per
- bag
- Pack Cont.
- 500pcs.
- PART DESCRIPTION
- EC30-PA66HIRHS-BK
- Product Family
- Bundling Clips for Edges, 1.0 - 3.0 mm, for Distance Routing
- Product Group
- Bundling Clips for Edges for Distance Routing
- Wings on clip base (Yes / No)
- YES
Logistics and Packaging
- EAN / GTIN
- 4031026250281
- Packaging 1 - Height (m)
- 0.2m
- Packaging 1 - Length (m)
- 0.395m
- Packaging 1 - Qty
- 500
- Packaging 1 - Type
- bag
- Packaging 1 - Volume (m³)
- 0.03555m³
- Packaging 1 - Weight (kg)
- 1.2825kg
- Packaging 1 - Width (m)
- 0.45m
- Packaging 3 - Height (m)
- 0.368m
- Packaging 3 - Length (m)
- 0.584m
- Packaging 3 - Qty
- 3000
- Packaging 3 - Type
- carton
- Packaging 3 - Volume (m³)
- 0.083m³
- Packaging 3 - Weight (kg)
- 8.515kg
- Packaging 3 - Width (m)
- 0.386m
- Packaging 4 - Height (m)
- 1.249m
- Packaging 4 - Length (m)
- 1.2m
- Packaging 4 - Qty
- 36000
- Packaging 4 - Type
- pallet
- Packaging 4 - Volume (m³)
- 1.199m³
- Packaging 4 - Weight (kg)
- 123.216kg
- Packaging 4 - Width (m)
- 0.8m
- Weight
- 1.25kg
Material and Specifications
- ELV compliant (Article 4 - 2)
- YES
- Flammability
- UL 94 HB
- Hazardous good
- No
- Material
- Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
- Operating Temperature - °C
- -40 °C to +80 °C
More Information
- ETIM 6.0
- EC000449
- ETIM 7.0 Key
- EC000449
Product Dimensions
- Bundling Bar Length
- 50.0mm
- for Panel Thickness min - max
- 1 - 3 mm
- Height (H)
- 13.5mm
- Length (L)
- 50.0mm
- Length (L2)
- 65.0mm
- Offset Length
- 65.0mm
- Panel Thickness max.
- 1.0 – 3.0mm
- Width (W)
- 9.0mm
