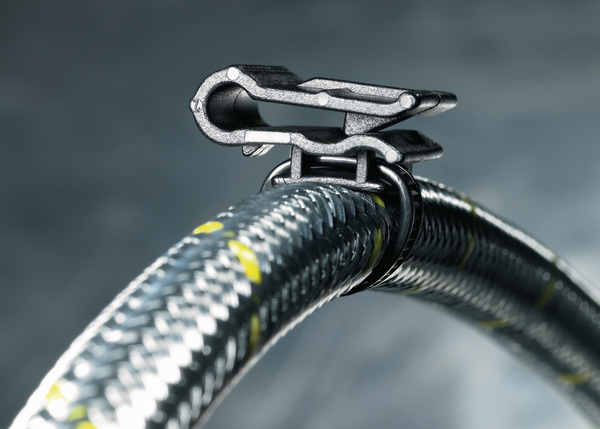

HellermannTyton 150-45292

Base Data

• Anti rotation (Yes / No)
  • YES
• Application 2
  • Ideal for use on 2.5 mm edges, the tie's reduced installation height makes it ideal for use wherever space is at a premium.
• Application Tool
  • MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9, MK9SST
• Colour
  • Black (BK)
• Description
  • This EdgeClip is very easy to mount. The holding tab snaps into the drill hole very securely. You will hear and feel the connection being made during mounting. Cable ties from a variety of product series and varying in terms of their dimensions and materials can be used in conjunction with this fixing element.
• Fixation Method
  • Edge Clips without metal insert
• Identification Plate Position
  • none
• No. of sides for tie attachment
  • 4
• Package Quantity per
  • bag
• Pack Cont.
  • 500pcs.
• PART DESCRIPTION
  • T50REC2.5B-PA66HS/PA66HIRHS-BK
• Product Family
  • T50REC2.5B for routing horizontal to an edge
• Product Group
  • 2-Piece Fixing Ties for Edges, for Holes
• Variant
  • Inside Serrated

Logistics and Packaging

• EAN / GTIN
  • 4031026220246
• Packaging 1 - Height (m)
  • 0.2m
• Packaging 1 - Length (m)
  • 0.395m
• Packaging 1 - Qty
  • 500
• Packaging 1 - Type
  • bag
• Packaging 1 - Volume (m³)
  • 0.03555m³
• Packaging 1 - Weight (kg)
  • 1.6325kg
• Packaging 1 - Width (m)
  • 0.45m
• Packaging 2 - Qty
  • 1
• Packaging 2 - Type
  • carton
• Packaging 2 - Weight (kg)
  • 0.003kg
• Packaging 3 - Height (m)
  • 0.368m
• Packaging 3 - Length (m)
  • 0.584m
• Packaging 3 - Qty
  • 3000
• Packaging 3 - Type
  • carton
• Packaging 3 - Volume (m³)
  • 0.083m³
• Packaging 3 - Weight (kg)
  • 10.615kg
• Packaging 3 - Width (m)
  • 0.386m
• Packaging 4 - Height (m)
  • 1.249m
• Packaging 4 - Length (m)
  • 1.2m
• Packaging 4 - Qty
  • 36000
• Packaging 4 - Type
  • pallet
• Packaging 4 - Volume (m³)
  • 1.199m³
• Packaging 4 - Weight (kg)
  • 148.416kg
• Packaging 4 - Width (m)
  • 0.8m
• Weight
  • 1.6kg

Material and Specifications

• Cable Tie
  • Polyamide 6.6, heat stabilised (PA66HS)
• ELV compliant (Article 4 - 2)
  • YES
• Flammability
  • UL 94 HB
• Foot Part
  • Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
• Hazardous good
  • No
• Material
  • Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
• Operating Temperature - °C
  • -40 °C to +105 °C
• Operating Temperature Foot Part (Metric)
  • -40 °C to +105 °C

More Information

• ETIM 6.0
  • EC000046
• ETIM 7.0 Key
  • EC000046

Product Dimensions

• Bundle ∅ max.
  • 40.0mm
• Bundle ∅ min.
  • 4.0mm
• for Panel Thickness min - max
  • 1 - 3 mm
  • 0 - 0.1 "
• Height (H)
  • 1.2mm
• Height (H2)
  • 22.8mm
• Length (L)
  • 202mm
• Length (L2)
  • 19.0mm
• Min.Tensile Strength
  • 225N
• Panel Thickness max.
  • 2.1 - 2.9mm
• Width (W)
  • 4.6mm
• Width (W2)
  • 11.7mm
