Description

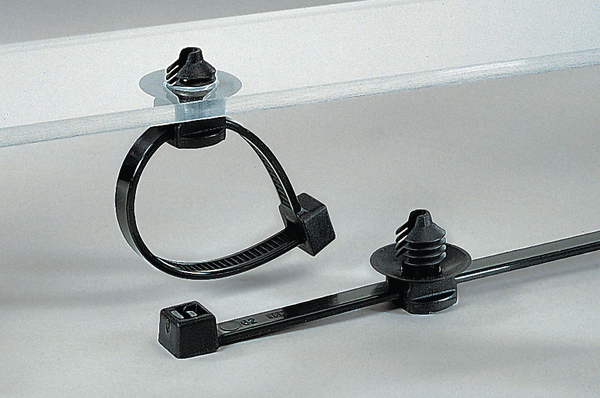

Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.2-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes
HellermannTyton 150-00700 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Anti rotation (Yes / No)
- NO
- Application Tool
- MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9
- Colour
- Black (BK)
- Description
- These two-piece fixings are supplied ready assembled and offer a simple and versatile method of bundling and fixing cables. The fir-tree base will easily push into pre-punched holes in panels or threaded, blind, holes and offers a very secure fixing. The two-piece design enables the head of the tie to be orientated to the required position to ease assembly, whilst the 'disc' on the top of the fir tree covers the hole and minimises the ingress of water and dirt.
- Fixation Method
- Fir Tree
- Fixing Hole Shape
- Circular
- Identification Plate Position
- none
- No. of sides for tie attachment
- 2
- Package Quantity per
- bag
- Pack Cont.
- 500pcs.
- PART DESCRIPTION
- T50IFT7-PA66HS-BK
- Product Family
- Fir Tree Parts FT7
- Product Group
- 2-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes
- Releasable Closure (Yes/No)
- No
- Short Description
- 2-Piece Fixing Tie with Fir Tree and Disc 300x4.6 black
- Tie Closure
- plastic pawl
- Variant
- Inside Serrated
Logistics and Packaging
- EAN / GTIN
- 4031026216102
- Packaging 1 - Height (m)
- 0.2m
- Packaging 1 - Length (m)
- 0.47m
- Packaging 1 - Qty
- 500
- Packaging 1 - Type
- bag
- Packaging 1 - Volume (m³)
- 0.05123m³
- Packaging 1 - Weight (kg)
- 1.5498kg
- Packaging 1 - Width (m)
- 0.545m
- Packaging 3 - Height (m)
- 0.368m
- Packaging 3 - Length (m)
- 0.584m
- Packaging 3 - Qty
- 3000
- Packaging 3 - Type
- carton
- Packaging 3 - Volume (m³)
- 0.083m³
- Packaging 3 - Weight (kg)
- 10.1188kg
- Packaging 3 - Width (m)
- 0.386m
- Packaging 4 - Height (m)
- 1.249m
- Packaging 4 - Length (m)
- 1.2m
- Packaging 4 - Qty
- 36000
- Packaging 4 - Type
- pallet
- Packaging 4 - Volume (m³)
- 1.199m³
- Packaging 4 - Weight (kg)
- 142.44kg
- Packaging 4 - Width (m)
- 0.8m
- Weight
- 1.505kg
Material and Specifications
- Cable Tie
- Polyamide 6.6, heat stabilised (PA66HS)
- ELV compliant (Article 4 - 2)
- YES
- Flammability
- UL 94 V2
- Foot Part
- Polyamide 6.6, heat stabilised (PA66HS)
- Hazardous good
- No
- Material
- Polyamide 6.6, heat stabilised (PA66HS)
- Operating Temperature - °C
- -40 °C to +105 °C, (+145 °C, 500 h)
- Operating Temperature Foot Part (Metric)
- -40 °C to +105 °C, (+145 °C, 500 h)
More Information
- ETIM 6.0
- EC000046
- ETIM 7.0 Key
- EC000046
Product Dimensions
- Bundle ∅ max.
- 85.0mm
- Bundle ∅ min.
- 5.0mm
- Disc ∅
- 16.0mm
- for Hole ∅ (FH)
- 6.5 - 7.0 mm
- for Panel Thickness min - max
- 0.8 - 7 mm
- Height (H)
- 1.2mm
- Height (H2)
- 12.7mm
- Length (L)
- 300mm
- Length of Fir Tree
- 12.7mm
- Min.Tensile Strength
- 225N
- Thickness (T)
- 1.2mm
- Width (W)
- 4.6mm
- Width (W2)
- 11.6mm
