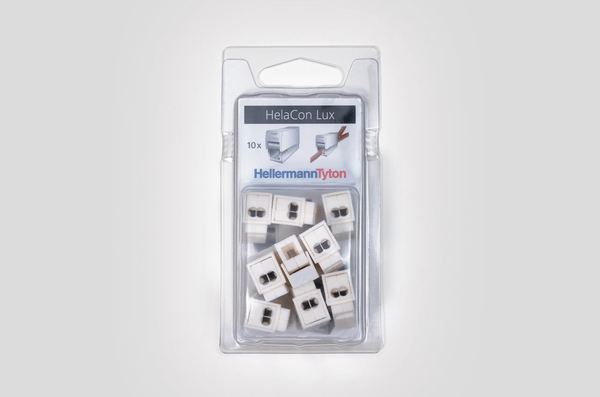

HellermannTyton 148-90058
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The typical application is lighting installation, where the solid conductor from concealed cabling has to be connected to a flexible cable for lighting or other device. The 2/1 variant allows the looping through of the supply lines for additional devices.
There are two types of cable insertion port on each side of the HelaCon Lux connector, one is a conventional push in wire type suitable for solid cable, whilst the other side is suitable for flexible cable and is inserted by pressing the locking mechanism and can be released in the same way at any time. The lighting side can accept any kind of conductor and makes HelaCon Lux connectors also useful to connect devices that use flexible connecting cables such as control devices for smart home applications e.g. for blinds, fans , heating & cooling.Connectors - For Lighting Installation
There are two types of cable insertion port on each side of the HelaCon Lux connector, one is a conventional push in wire type suitable for solid cable, whilst the other side is suitable for flexible cable and is inserted by pressing the locking mechanism and can be released in the same way at any time. The lighting side can accept any kind of conductor and makes HelaCon Lux connectors also useful to connect devices that use flexible connecting cables such as control devices for smart home applications e.g. for blinds, fans , heating & cooling.Connectors - For Lighting Installation
HellermannTyton 148-90058 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Package Quantity per
- box
- Pack Cont.
- 10pcs.
- PART DESCRIPTION
- HECL-2/1-Blister-PA66
- Product Family
- HelaCon Lux
- Product Group
- Connectors - For Lighting Installation
- Short Description
- The range of push-in wire connectors is used for fast, easy and reliable connection and distribution of cable and conductors in electrical housing applications. They may be used within a typical range of housing voltage up to 450 Volt. Numerous variants offering a huge variety of input poles allows high flexibility in application depending on the number of conductors and available space. Cross-sections from 0.5 mm² up to 1.5 and 2.5 mm² can conveniently be processed - connectors for many applications are provided. The way of cable distribution and branch connections varies from country to country due to the different types of wires, diameters, colours, junction boxes and mounting systems in use. No matter how distinct the individual requirements are - the HelaCon connector series offers the best solution for every task – worldwide.
Logistics and Packaging
- EAN / GTIN
- 4031026614007
- Packaging 1 - Height (m)
- 0.035m
- Packaging 1 - Length (m)
- 0.105m
- Packaging 1 - Qty
- 1
- Packaging 1 - Type
- pack
- Packaging 1 - Volume (m³)
- 0.0002m³
- Packaging 1 - Weight (kg)
- 0.0019kg
- Packaging 1 - Width (m)
- 0.055m
- Packaging 3 - Height (m)
- 0.32m
- Packaging 3 - Length (m)
- 0.37m
- Packaging 3 - Qty
- 180
- Packaging 3 - Type
- carton
- Packaging 3 - Volume (m³)
- 0.029m³
- Packaging 3 - Weight (kg)
- 0.342kg
- Packaging 3 - Width (m)
- 0.245m
- Packaging 4 - Height (m)
- 1.1m
- Packaging 4 - Length (m)
- 1.2m
- Packaging 4 - Qty
- 4860
- Packaging 4 - Type
- pallet
- Packaging 4 - Volume (m³)
- 1.056m³
- Packaging 4 - Weight (kg)
- 30.234kg
- Packaging 4 - Width (m)
- 0.8m
- Weight
- 0.0019kg
Material and Specifications
- ELV compliant (Article 4 - 2)
- YES
- Flammability
- UL 94 V2
- Halogenfree
- Yes
- Hazardous good
- No
- Material
- Polyamide (PA)
- Operating Temperature - °C
- -5 °C to +100 °C
- Specifications
- CEBEC, cULus, EN 60998-2-2:1993, ENEC, FIMKO, VDE
More Information
- ETIM 6.0
- EC000447
- ETIM 7.0 Key
- EC000447
Product Dimensions
- Height (H)
- 15.8mm
- Length (L)
- 20.8mm
- Max. cable cross section
- 2.5mm²
- Max Current
- 24A
- Max Voltage
- 450V
- Min. cable cross section (installation side)
- 0.75mm²
- Min. cable cross section (luminaire side)
- 0.5mm²
- Nominal cross section ETIM
- 2.5mm²
- Stripping Length
- 11mm
- Wire Range (VDE)
- 0.5 mm² - 2.5mm²
