HellermannTyton 148-90046
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
HelaCon connectors are used for fast, easy and reliable connection and distribution of cable and conductors in electrical installation applications. The new generation of HelaCon Plus Mini wire connectors can be applied tool-free using the push-in technology. HelaCon Plus Mini uses a double spring which is approved for solid and stranded wires.Connectors - For Solid and Stranded Wires
HellermannTyton 148-90046 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Colour
- Transparent (CL)
- Package Quantity per
- box
- Pack Cont.
- 350pcs.
- PART DESCRIPTION
- HCPM Variobox 350-PC-CL
- Product Family
- HelaCon Plus Mini
- Product Group
- Connectors - For Solid and Stranded Wires
- Short Description

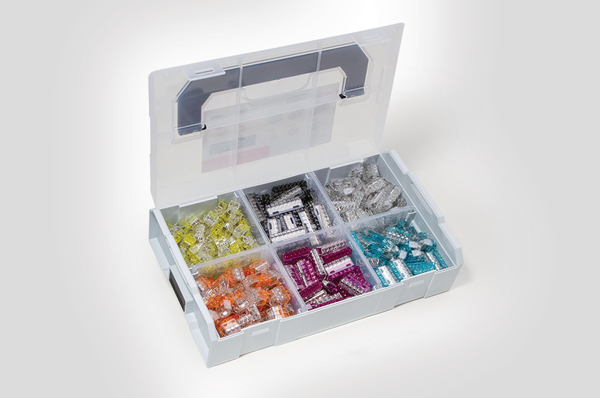

- Push-in Wire Connector Variobox 350
- Suitable for flexible core (Yes/No)
- No
- Suitable for multi wire core (Yes/No)
- Yes
- Suitable for solid core (Yes/No)
- Yes
Logistics and Packaging
- EAN / GTIN
- 4031026556994
- Packaging 1 - Height (m)
- 0.065m
- Packaging 1 - Length (m)
- 0.26m
- Packaging 1 - Qty
- 1
- Packaging 1 - Type
- pack
- Packaging 1 - Volume (m³)
- 0.00262m³
- Packaging 1 - Weight (kg)
- 1.0562kg
- Packaging 1 - Width (m)
- 0.155m
- Packaging 3 - Height (m)
- 0.17m
- Packaging 3 - Length (m)
- 0.56m
- Packaging 3 - Qty
- 4
- Packaging 3 - Type
- carton
- Packaging 3 - Volume (m³)
- 0.0171m³
- Packaging 3 - Weight (kg)
- 4.4448kg
- Packaging 3 - Width (m)
- 0.18m
- Packaging 4 - Height (m)
- 1.171m
- Packaging 4 - Length (m)
- 1.2m
- Packaging 4 - Qty
- 192
- Packaging 4 - Type
- pallet
- Packaging 4 - Volume (m³)
- 1.124m³
- Packaging 4 - Weight (kg)
- 234.312kg
- Packaging 4 - Width (m)
- 0.8m
- Weight
- 0.75kg
Material and Specifications
- ELV compliant (Article 4 - 2)
- YES
- Flammability
- UL 94 V0
- Halogenfree
- Yes
- Hazardous good
- No
- Material
- Polycarbonate (PC)
- Operating Temperature - °C
- -30 °C to +85 °C
- Specifications
- 2006/65/EC, EN 60998-2-2:2004, ENEC
- UL-File Number
- E316080
More Information
- ETIM 6.0
- EC000446
- ETIM 7.0 Key
- EC000446
Product Dimensions
- Height (H)
- 7.7mm
- Length (L)
- 16.5mm
- Max Current
- 24A
- Max Voltage
- 600V
- Stripping Length
- 11.0mm
- Wire Range (cULus)
- 22-12 AWG Sol. Cu / 22-14 AWG Tin-dipped Str. Cu
- Wire Range (VDE)
- 0.5 to 2.5 mm² solid wires / 1.0 to 2.5 mm² stranded wires
