Description

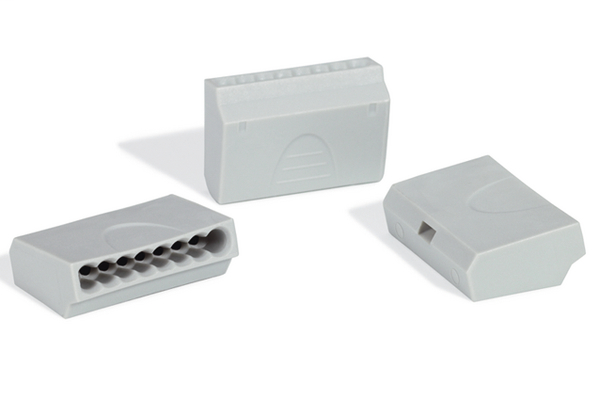

HelaCon Easy, Article number: 148-90018
HellermannTyton 148-90018 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Cable ∅ max
- 1.38mm
- Cable ∅ min
- 0.8mm
- Colour
- Grey (GY)
- Description Short (BMEcat) (max. 150 characters)
- Push-in Wire Connector 8-pole 0.5 - 1.5 mm² solid grey
- GLOBAL PART NAME (auto set)
- HECE-8x1.5-PA66-GY
- Max Current
- 17.5A
- Max Voltage
- 450V
- Number of Conductors
- 8
- Package Quantity per
- box
- Pack Cont.
- 75pcs.
- Product Family
- HelaCon Easy
- Product Group
- Connectors - For Solid Wires
- Stripping Length
- 11mm
- Suitable for flexible core (Yes/No)
- No
- Suitable for multi wire core (Yes/No)
- No
- Suitable for solid core (Yes/No)
- Yes
- Wire Range (cULus)
- 12 - 22 AWG solid
- Wire Range (VDE)
- 0.5 - 1.5 mm² solid
Logistics and Packaging
- EAN / GTIN
- 4031026317144
- Packaging 1 - Height (m)
- 0.07m
- Packaging 1 - Length (m)
- 0.105m
- Packaging 1 - Qty
- 75
- Packaging 1 - Type
- bag
- Packaging 1 - Volume (m³)
- 0.00055m³
- Packaging 1 - Weight (kg)
- 0.3kg
- Packaging 1 - Width (m)
- 0.075m
- Packaging 2 - Height (m)
- 0.075m
- Packaging 2 - Length (m)
- 0.35m
- Packaging 2 - Qty
- 375
- Packaging 2 - Type
- carton
- Packaging 2 - Volume (m³)
- 0.0026m³
- Packaging 2 - Weight (kg)
- 1.5kg
- Packaging 2 - Width (m)
- 0.1m
- Packaging 3 - Height (m)
- 0.32m
- Packaging 3 - Length (m)
- 0.37m
- Packaging 3 - Qty
- 3375
- Packaging 3 - Type
- carton
- Packaging 3 - Volume (m³)
- 0.029m³
- Packaging 3 - Weight (kg)
- 13.5kg
- Packaging 3 - Width (m)
- 0.245m
- Packaging 4 - Length (m)
- 1.2m
- Packaging 4 - Qty
- 91125
- Packaging 4 - Type
- pallet
- Packaging 4 - Weight (kg)
- 385.5kg
- Packaging 4 - Width (m)
- 0.8m
- Weight
- 0.3kg
- 14.1oz
Material and Specifications
- ELV compliant (Article 4 - 2)
- YES
- Flammability
- UL 94 V2
- Halogenfree
- Yes
- Hazardous goods
- No
- Material
- Polyamide 6.6 (PA66)
- Operating Temperature - °C
- -30 °C to +110 °C (VDE), -30 °C to +105 °C (cULus)
- Specifications
- 60998-1:2004, EN 60998-2-2:2004, ENEC, FIMKO, VDE
- UL-File Number
- E316080
More Information
- ETIM 5.0
- EC000446
- ETIM 6.0
- EC000446
- UNSPSC Key
- 39121409
Product Dimensions
- Height (H)
- 8.8mm
- Length (L)
- 18.5mm
- Width (W)
- 26.0mm
