Description

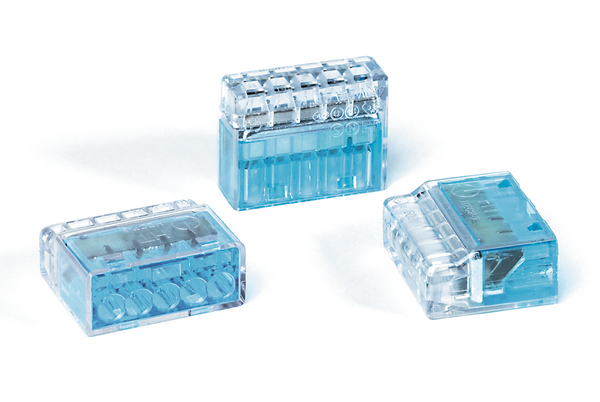

HelaCon Plus, Article number: 148-90003
HellermannTyton 148-90003 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Colour
- Transparent (CL), Blue (BU)
- Description Short (BMEcat) (max. 150 characters)
- Push-in Wire Connector 5-pole 0.5 to 2.5 mm² solid / stranded (max. 7 cores) transparent/blue
- Manufacturer Type
- HECP-5 PC CL/BU 50
- Max Current
- 24 A
- Max Voltage
- 600 V
- Number of Conductors
- 5
- Product Family
- HelaCon Plus
- Product Group
- Connectors
- Stripping Length
- 11 mm
- Suitable for flexible core (Yes/No)
- No
- Suitable for multi wire core (Yes/No)
- Yes
- Suitable for solid core (Yes/No)
- Yes
- Wire Range (cULus)
- AWG 12 to 22 solid/stranded
- Wire Range (VDE)
- 0.5 to 2.5 mm² solid / stranded (max. 7 cores)
Logistics and Packaging
- Carton Quantity
- 2250 pcs.
- EAN / GTIN
- 4031026268798
- Pack Cont.
- 50 pcs.
- Quantity of Europallet
- 60750 pcs.
- Quantity per
- Box
- Weight
- 0.53 kg
- 10.5 oz
Material and Specifications
- ELV compliant Dir. Art. 4 (2)
- YES
- Flammability
- UL94 V2
- Halogenfree
- Yes
- Hazardous goods
- No
- Material
- Polycarbonate (PC)
- Operating Temperature
- -30 °C to +105 °C
- REACH compliant Regu. Art. 33
- YES
- Specifications
- VDE, cULus, NEMKO, SEMKO, DEMKO, FIMKO, CEN, KEMA-KEUR, GL, ENEC
More Information
- ETIM 5.0
- EC000446
- ETIM 6.0
- EC000446
- UNSPSC Key
- 39121409
Product Dimensions
- Depth (D)
- 19.0 mm
- Height (H)
- 10.45 mm
- Length (L)
- 10.45 mm
- Width (W)
- 24.20 mm
