HellermannTyton 148-00146
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

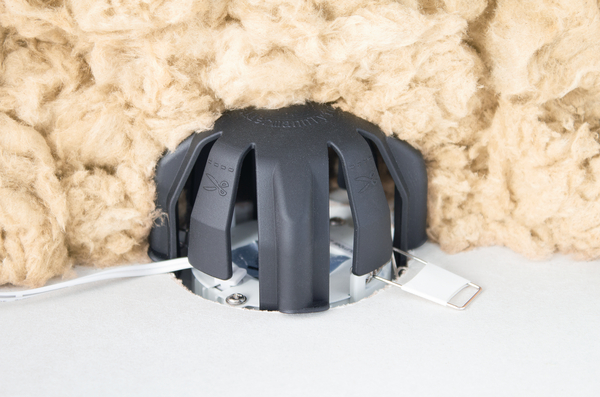

SpotClip-IV Slim ensures safety distance between downlight, damp-proof foil and insulation material and can thereby prevent the risk of overheating and premature deterioration of the lighting
Safe use and installation of ultra-flat LED lights
Suitable for ceiling cut-outs with a recessed diameter of 73 to 83 mm.
Ensure safety distance between downlight, damp-proof foil and insulation material
4 additional and flexible tabs prevent contact between loose insulation material and the luminaire, making it ideal for use with bulk and blown insulation materials
Removable tabs allow to accommodate a transformer or to facilitate cable installation
Solution can be installed during or after construction
Tested according to EN 60598-1, EN 60598-2-2, and NF C 15100Downlight covers - For residential buildings
Safe use and installation of ultra-flat LED lights
Suitable for ceiling cut-outs with a recessed diameter of 73 to 83 mm.
Ensure safety distance between downlight, damp-proof foil and insulation material
4 additional and flexible tabs prevent contact between loose insulation material and the luminaire, making it ideal for use with bulk and blown insulation materials
Removable tabs allow to accommodate a transformer or to facilitate cable installation
Solution can be installed during or after construction
Tested according to EN 60598-1, EN 60598-2-2, and NF C 15100Downlight covers - For residential buildings
HellermannTyton 148-00146 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Colour
- Black (BK)
- Pack Cont.
- 10pc.
- PART DESCRIPTION
- SpotClip-IV-Slim-PA66GF15-BK
- Product Family
- SpotClip-IV-Slim
- Product Group
- Downlight covers - For residential buildings
- Short Description
- Downlight cover for residential buildings
Logistics and Packaging
- EAN / GTIN
- 4031026610788
- Packaging 1 - Height (m)
- 0.064m
- Packaging 1 - Length (m)
- 0.075m
- Packaging 1 - Qty
- 1
- Packaging 1 - Type
- pcs.
- Packaging 1 - Volume (m³)
- 0.00036m³
- Packaging 1 - Weight (kg)
- 0.027123kg
- Packaging 1 - Width (m)
- 0.075m
- Packaging 2 - Height (m)
- 0.09m
- Packaging 2 - Length (m)
- 0.36m
- Packaging 2 - Qty
- 10
- Packaging 2 - Type
- bag
- Packaging 2 - Volume (m³)
- 0.0075m³
- Packaging 2 - Weight (kg)
- 0.271231kg
- Packaging 2 - Width (m)
- 0.23m
- Packaging 3 - Height (m)
- 0.17m
- Packaging 3 - Length (m)
- 0.56m
- Packaging 3 - Qty
- 50
- Packaging 3 - Type
- carton
- Packaging 3 - Volume (m³)
- 0.0171m³
- Packaging 3 - Weight (kg)
- 1.576155kg
- Packaging 3 - Width (m)
- 0.18m
- Packaging 4 - Height (m)
- 1.17m
- Packaging 4 - Length (m)
- 1.2m
- Packaging 4 - Qty
- 2400
- Packaging 4 - Type
- pallet
- Packaging 4 - Volume (m³)
- 1.123m³
- Packaging 4 - Weight (kg)
- 96.655kg
- Packaging 4 - Width (m)
- 0.8m
- Weight
- 0.027123kg
Material and Specifications
- ELV compliant (Article 4 - 2)
- YES
- Flammability
- material rated UL94 V0 at 1.5 mm thickness, Glow Wire Test (GWT) 960 °C
- Halogenfree
- Yes
- Hazardous good
- No
- Material
- Polyamide 6.6, glass-fibre reinforced (PA66GF15%)
- Operating Temperature - °C
- -20 °C to +120 °C
- Suitable for high voltage luminaires
- Yes
- Suitable for low voltage luminaires
- Yes
More Information
- ETIM 6.0
- EC000414
- ETIM 7.0 Key
- EC000414
Product Dimensions
- Height (H)
- 50mm
- Height (H2)
- 43mm
