Description

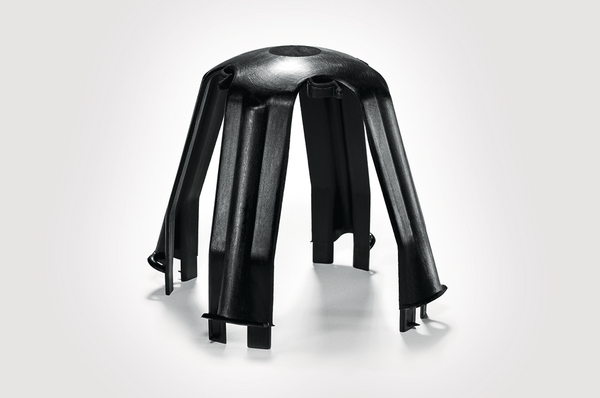

SpotClip-I, Article number: 148-00094
HellermannTyton 148-00094 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Colour
- Black (BK)
- Description Short (BMEcat) (max. 150 characters)
- Down light mounting device black for recessed spotlights with Ø 62-90mm black
- Features and Benefits
- Advantages - Thanks to the mounting clips, SpotClip locks easily in place in the ceiling cavity. - The 4-leg design ensures high stability and durability. - The arrangement of the flexible mounting feet enables the clips for the spots to be snapped easily into place. - Additional retaining spikes prevent shifting and displacement during mounting. - The cable retainers on the heat protection top hold the supply cable in place and prevent it from coming into direct contact with the hot spot. They also make it easier to mount and replace the spot.
- GLOBAL PART NAME (auto set)
- SpotClip-I-PA66GF15-BK
- Package Quantity per
- pieces
- Pack Cont.
- 3pcs.
- Product Family
- SpotClip-I
- Product Group
- Downlight Covers - For Residential Buildings
Logistics and Packaging
- EAN / GTIN
- 4031026409788
- Packaging 1 - Height (m)
- 0.105m
- Packaging 1 - Length (m)
- 0.27m
- Packaging 1 - Qty
- 1
- Packaging 1 - Type
- bag
- Packaging 1 - Volume (m³)
- 0.00624m³
- Packaging 1 - Weight (kg)
- 0.107kg
- Packaging 1 - Width (m)
- 0.22m
- Packaging 3 - Height (m)
- 0.17m
- Packaging 3 - Length (m)
- 0.56m
- Packaging 3 - Qty
- 15
- Packaging 3 - Type
- carton
- Packaging 3 - Volume (m³)
- 0.0171m³
- Packaging 3 - Weight (kg)
- 1.825kg
- Packaging 3 - Width (m)
- 0.18m
- Packaging 4 - Height (m)
- 1.171m
- Packaging 4 - Length (m)
- 1.2m
- Packaging 4 - Qty
- 720
- Packaging 4 - Type
- pallet
- Packaging 4 - Volume (m³)
- 1.124m³
- Packaging 4 - Weight (kg)
- 108.6kg
- Packaging 4 - Width (m)
- 0.8m
- Weight
- 0.107kg
Material and Specifications
- ELV compliant (Article 4 - 2)
- YES
- Flammability
- material rated UL94 V0 at 1.5 mm thickness, Glow Wire Test (GWT) 960 °C
- Halogenfree
- Yes
- Hazardous goods
- No
- Material
- Polyamide 6.6, glass-fibre reinforced (PA66GF15%)
- Operating Temperature - °C
- -20 °C to +120 °C
- Suitable for high voltage luminaires
- Yes
- Suitable for low voltage luminaires
- Yes
More Information
- ETIM 5.0
- EC000414
- ETIM 6.0
- EC000414
Product Dimensions
- for Hole ∅ (FH)
- 62 - 90 mm
- Height (H)
- 82mm
- Height (H2)
- 70mm
- Max. diameter luminaire
- 90mm
- Min. ceiling thickness
- 8mm
