Description

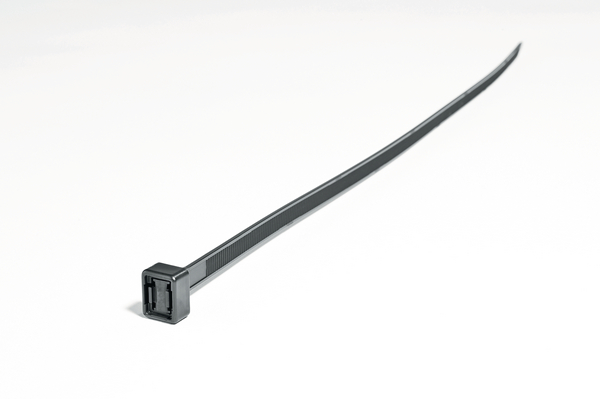

Using a single hole these 'chassis ties' are widely used in the automotive, truck and heavy equipment markets. Ideal for applications which have access to both sides of the hole - example truck frame rails.Cable Ties for single hole application (Chassis Tie)
HellermannTyton 132-37540 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Application Tool
- MK6, MK9P, MK21, EVO9, EVO9HT
- Colour
- Black (BK)
- Fixation Method
- Others
- Identification Plate Position
- none
- Package Quantity per
- pcs.
- Pack Cont.
- 500pcs.
- PART DESCRIPTION
- CT375-PA66HS-BK
- Product Family
- CT-Series with square head, 700 N loop tensile strength
- Product Group
- Cable Ties for single hole application (Chassis Tie)
- Releasable Closure (Yes/No)
- No
- Tie Closure
- plastic pawl
- Variant
- Outside Serrated
Logistics and Packaging
- EAN / GTIN
- 4031026115832
- Packaging 1 - Height (m)
- 0.057m
- Packaging 1 - Length (m)
- 0.415m
- Packaging 1 - Qty
- 500
- Packaging 1 - Type
- bag
- Packaging 1 - Volume (m³)
- 0.00994m³
- Packaging 1 - Weight (kg)
- 2.55kg
- Packaging 1 - Width (m)
- 0.42m
- Packaging 3 - Height (m)
- 0.218m
- Packaging 3 - Length (m)
- 0.599m
- Packaging 3 - Qty
- 2000
- Packaging 3 - Type
- carton
- Packaging 3 - Volume (m³)
- 0.0522m³
- Packaging 3 - Weight (kg)
- 10.95kg
- Packaging 3 - Width (m)
- 0.4m
- Packaging 4 - Height (m)
- 1.195m
- Packaging 4 - Length (m)
- 1.2m
- Packaging 4 - Qty
- 40000
- Packaging 4 - Type
- pallet
- Packaging 4 - Volume (m³)
- 1.147m³
- Packaging 4 - Weight (kg)
- 240.0kg
- Packaging 4 - Width (m)
- 0.8m
- Weight
- 2.55kg
Material and Specifications
- Cable Tie
- Polyamide 6.6, heat stabilised (PA66HS)
- ELV compliant (Article 4 - 2)
- YES
- Flammability
- UL 94 V2
- Hazardous good
- No
- Material
- Polyamide 6.6, heat stabilised (PA66HS)
- Material Head
- Polyamide 6.6, heat stabilised (PA66HS)
- Operating Temperature - °C
- -40 °C to +105 °C
More Information
- ETIM 6.0
- EC000046
- ETIM 7.0 Key
- EC000046
Product Dimensions
- Bundle ∅ max.
- 100mm
- Cable Tie Head Height (Metric)
- 12mm
- Cable Tie Head Length (metric)
- 7.5mm
- Cable Tie Head Width (metric)
- 15mm
- for Hole ∅ (FH)
- 9.5 - 10.5 mm
- Height (H)
- 1.5mm
- Height (H2)
- 7.5mm
- Length (L)
- 375mm
- Min.Tensile Strength
- 700N
- Thickness (T)
- 1.5mm
- Width (W)
- 7.6mm
