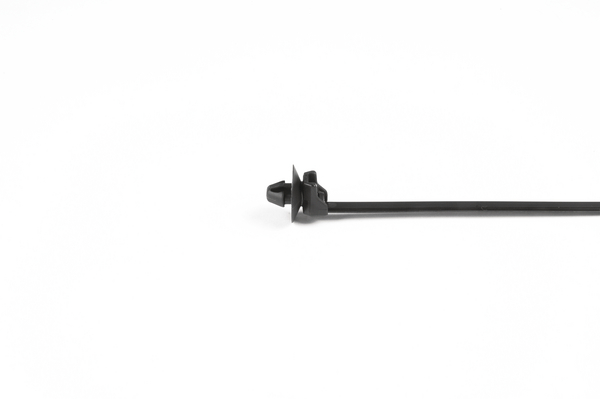

HellermannTyton 126-03102
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
With a diverse range of fixing possibilities these ties are ideal for use in many different industries, including automotive, aerospace, white goods manufacture and panel building. This fastening solution is used to secure cable harnesses. We offer a variety of panel thicknesses and hole sizes to suit all kinds of application.1-Piece Fixing Ties with Arrowhead, with Disc
HellermannTyton 126-03102 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Application Tool
- MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9
- Colour
- Black (BK)
- Fixation Method
- Arrowhead
- Identification Plate Position
- none
- Package Quantity per
- bag
- Pack Cont.
- 500pcs.
- PART DESCRIPTION
- T50SOSSFT6.5E-PA66HS-BK
- Product Family
- 1-Piece Fixing Ties with Arrowhead, with Disc, for Round Holes
- Product Group
- 1-Piece Fixing Ties with Arrowhead, with Disc
- Releasable Closure (Yes/No)
- No
- Short Description
- 1-Piece Fixing Tie with Arrowhead and Disc 160x4.6 black
- Tie Closure
- plastic pawl
- Variant
- Outside Serrated
Logistics and Packaging
- EAN / GTIN
- 4031026230931
- Packaging 1 - Height (m)
- 0.3m
- Packaging 1 - Length (m)
- 0.625m
- Packaging 1 - Qty
- 500
- Packaging 1 - Type
- bag
- Packaging 1 - Volume (m³)
- 0.0825m³
- Packaging 1 - Weight (kg)
- 0.691kg
- Packaging 1 - Width (m)
- 0.44m
- Packaging 3 - Height (m)
- 0.368m
- Packaging 3 - Length (m)
- 0.584m
- Packaging 3 - Qty
- 4000
- Packaging 3 - Type
- carton
- Packaging 3 - Volume (m³)
- 0.083m³
- Packaging 3 - Weight (kg)
- 6.348kg
- Packaging 3 - Width (m)
- 0.386m
- Packaging 4 - Height (m)
- 1.249m
- Packaging 4 - Length (m)
- 1.2m
- Packaging 4 - Qty
- 48000
- Packaging 4 - Type
- pallet
- Packaging 4 - Volume (m³)
- 1.199m³
- Packaging 4 - Weight (kg)
- 97.176kg
- Packaging 4 - Width (m)
- 0.8m
- Weight
- 0.69kg
Material and Specifications
- ELV compliant (Article 4 - 2)
- YES
- Flammability
- UL 94 V2
- Hazardous good
- No
- Material
- Polyamide 6.6, heat stabilised (PA66HS)
- Operating Temperature - °C
- -40 °C to +105 °C
More Information
- ETIM 6.0
- EC000046
- ETIM 7.0 Key
- EC000046
- UNSPSC Key
- 39121717
Product Dimensions
- Bundle ∅ max.
- 30.0mm
- Bundle ∅ min.
- 1.5mm
- Disc ∅
- 16.0mm
- for Hole ∅ (FH)
- 6.3 - 6.7 mm
- for Panel Thickness min - max
- 1.9 - 2.5 mm
- 0.1 - 0.1 "
- Length (L)
- 158.8mm
- Min.Tensile Strength
- 225.0N
- Panel Thickness max.
- 1.9 – 2.5mm
- Thickness (T)
- 1.2mm
- Width (W)
- 4.6mm
