Description

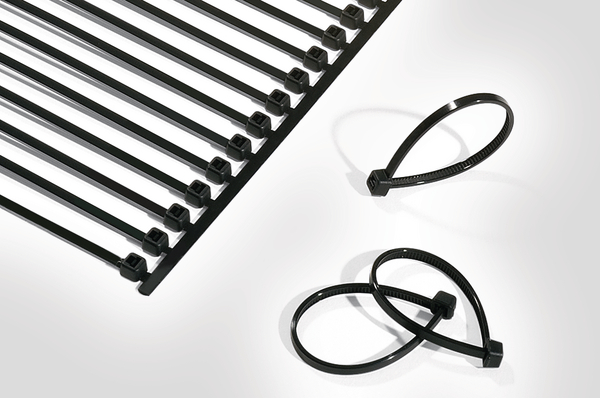

The inside-serrated cable ties are designed for use specifically in the automatic cable tying systems. The Autotool 2000 CPK is ideally suited for handling high volumes applications in wire harness facilities, automotive and industrial companies as wells as the packaging sector.Automatic bundling up to Ø 20 mm
HellermannTyton 120-40020 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Application Tool
- Autotool 2000 CPK
- Colour
- Black (BK)
- Content
- Bandoleer with 50 cable ties
- Fixation Method
- Others
- Package Quantity per
- carton
- Pack Cont.
- 2000pcs.
- PART DESCRIPTION
- T18RA50-PA66HSW-BK
- Power Supply unit
- Input: 100-240 V a.c., 50/60 Hz Output: 25.2 V d.c., max. 150 W
- Product Family
- Cable ties for Autotool 2000 Series
- Product Group
- Automatic bundling up to Ø 20 mm
- Short Description
- Cable tie bandolier 100x2.5 mm, heat-resistant, UV-resistant, black (2000 pcs.)
- Autotool 2000 is an electrically operated automatic cable tying system which has been design to speed up the binding process. Consistency and quality in the process of bundling, threading and cutting is achieved at the touch of a button.
- Tool suitable cable tie material
- Plastic
- Variant
- Inside Serrated
Logistics and Packaging
- EAN / GTIN
- 4031026438023
- Packaging 1 - Height (m)
- 0.05m
- Packaging 1 - Length (m)
- 0.55m
- Packaging 1 - Qty
- 2000
- Packaging 1 - Type
- bag
- Packaging 1 - Volume (m³)
- 0.00605m³
- Packaging 1 - Weight (kg)
- 0.82001kg
- Packaging 1 - Width (m)
- 0.22m
- Packaging 3 - Height (m)
- 0.287m
- Packaging 3 - Length (m)
- 0.46m
- Packaging 3 - Qty
- 20000
- Packaging 3 - Type
- carton
- Packaging 3 - Volume (m³)
- 0.0433m³
- Packaging 3 - Weight (kg)
- 8.7901kg
- Packaging 3 - Width (m)
- 0.328m
- Packaging 4 - Height (m)
- 1.106m
- Packaging 4 - Length (m)
- 1.2m
- Packaging 4 - Qty
- 400000
- Packaging 4 - Type
- pallet
- Packaging 4 - Volume (m³)
- 1.062m³
- Packaging 4 - Weight (kg)
- 196.8kg
- Packaging 4 - Width (m)
- 0.8m
- Weight
- 0.8kg
Material and Specifications
- ELV compliant (Article 4 - 2)
- YES
- Flammability
- UL 94 V2
- Halogenfree
- Yes
- Hazardous good
- No
- Material
- Polyamide 6.6, heat and UV-resistant (PA66HSW)
- Operating Temperature - °C
- -40 °C to +105 °C, (+145 °C, 500 h)
- Specifications
- ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B
- UL-File Number
- E65344
- UL Type
- 11
More Information
- ETIM 6.0
- EC000046
- ETIM 7.0 Key
- EC000046
Product Dimensions
- Bundle ∅ max.
- 20.0mm
- Bundle ∅ min.
- 0.7mm
- Length (L)
- 100mm
- Min.Tensile Strength
- 80N
- Width (W)
- 2.5mm
