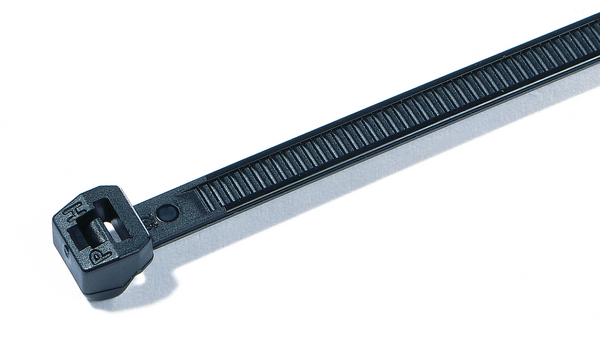

HellermannTyton 118-00125

Base Data

• Application 2
  • Applications - These ties are used in many areas where thin - walled or soft insulation wires and cable are being installed e. g. mass transit, data installations and electronics.
• Application Tool
  • MK3PNSP2, MK3SP, MK20, EVO7
• Colour
  • Black (BK)
• Features and Benefits
  • The ever increasing demands for tighter bundles in cable installations has led to problems with the conventional inside serrated cable tie design, causing damage to cable insulation, particularly in vibration environments. The Outside Serrated range of ties overcomes these problems offering high tensile strengths, low insertion forces and a smooth surface to the insulation minimising indentation. The curved head allows the tie to follow the contours of the cable and take up less space than other cable tie designs.
• Identification Plate Position
  • none
• Package Quantity per
  • bag
• Pack Cont.
  • 100pcs.
• PART DESCRIPTION
  • T18ROS-PA66W-BK
• Product Family
  • OS-Series
• Product Group
  • Cable Ties for thin-walled bundles
• Releasable Closure (Yes/No)
  • No
• Short Description
  • Cable Tie outside serrated 100x2.5 mm, UV-resistant, black
• Tie Closure
  • plastic pawl
• Variant
  • Outside Serrated

Logistics and Packaging

• EAN / GTIN
  • 4031026559346
• Packaging 1 - Height (m)
  • 0.022m
• Packaging 1 - Length (m)
  • 0.135m
• Packaging 1 - Qty
  • 100
• Packaging 1 - Type
  • bag
• Packaging 1 - Volume (m³)
  • 0.0004m³
• Packaging 1 - Weight (kg)
  • 0.03kg
• Packaging 1 - Width (m)
  • 0.136m
• Packaging 3 - Height (m)
  • 0.204m
• Packaging 3 - Length (m)
  • 0.591m
• Packaging 3 - Qty
  • 25000
• Packaging 3 - Type
  • carton
• Packaging 3 - Volume (m³)
  • 0.048m³
• Packaging 3 - Weight (kg)
  • 8.302kg
• Packaging 3 - Width (m)
  • 0.398m
• Packaging 4 - Height (m)
  • 1.164m
• Packaging 4 - Length (m)
  • 1.2m
• Packaging 4 - Qty
  • 500000
• Packaging 4 - Type
  • pallet
• Packaging 4 - Volume (m³)
  • 1.117m³
• Packaging 4 - Weight (kg)
  • 187.04kg
• Packaging 4 - Width (m)
  • 0.8m
• Weight
  • 0.03kg

Material and Specifications

• ELV compliant (Article 4 - 2)
  • YES
• EN 45545-2 Results
  • R22 HL2, R23 HL2
• Flammability
  • UL 94 V2
• Halogenfree
  • Yes
• Hazardous good
  • No
• Material
  • Polyamide 6.6, UV-resistant (PA66W)
• Operating Temperature - °C
  • -40 °C to +85 °C
• Specifications
  • DIN EN 45545-2 (08/2013)

More Information

• ETIM 6.0
  • EC000046
• ETIM 7.0 Key
  • EC000046

Product Dimensions

• Bundle ∅ max.
  • 20.0mm
• Bundle ∅ min.
  • 1.6mm
• Height (H)
  • 1mm
• Length (L)
  • 100mm
• Min.Tensile Strength
  • 80N
• Thickness (T)
  • 1.0mm
• Width (W)
  • 2.5mm
