HellermannTyton 113-12029
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

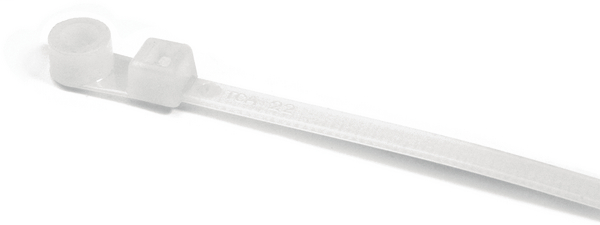

This range of cable ties have a built in mounting hole and once fastened around the cables the bundle can be simply secured to the panel with a screw or bolt.
Ideal for fixing cables into 'gaming machines', control panels etc.1-Piece Fixing Ties with Mounting Head for Screws
Ideal for fixing cables into 'gaming machines', control panels etc.1-Piece Fixing Ties with Mounting Head for Screws
HellermannTyton 113-12029 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Application Tool
- MK6, MK9P, MK21, EVO9, EVO9HT
- Colour
- Natural (NA)
- Fixation Method
- Fixing hole
- Identification Plate Position
- none
- Mounting Screw Type
- #1/4" (M6) Screw
- Package Quantity per
- bag
- Pack Cont.
- 50pcs.
- PART DESCRIPTION
- T120MR-PA66-NA
- Product Family
- MR Series
- Product Group
- 1-Piece Fixing Ties with Mounting Head for Screws
- Releasable Closure (Yes/No)
- No
- Short Description
- 15.55", 120 lb., screw mount cable tie, natural, 50/bag
- Fixing Tie 395x7.6 natural
- Tie Closure
- plastic pawl
- Variant
- Inside Serrated
Logistics and Packaging
- EAN / GTIN
- 4031026108285
- Packaging 1 - Height (m)
- 0.045m
- Packaging 1 - Length (m)
- 0.56m
- Packaging 1 - Qty
- 50
- Packaging 1 - Type
- bag
- Packaging 1 - Volume (m³)
- 0.00416m³
- Packaging 1 - Weight (kg)
- 0.35kg
- Packaging 1 - Width (m)
- 0.165m
- Packaging 3 - Height (m)
- 0.215m
- Packaging 3 - Length (m)
- 0.52m
- Packaging 3 - Qty
- 1000
- Packaging 3 - Type
- carton
- Packaging 3 - Volume (m³)
- 0.0363m³
- Packaging 3 - Weight (kg)
- 7.507kg
- Packaging 3 - Width (m)
- 0.325m
- Packaging 4 - Length (m)
- 1.2m
- Packaging 4 - Qty
- 20000
- Packaging 4 - Type
- pallet
- Packaging 4 - Weight (kg)
- 171.14kg
- Packaging 4 - Width (m)
- 0.8m
- Weight
- 0.35kg
Material and Specifications
- CSA Certified
- No
- ELV compliant (Article 4 - 2)
- YES
- Flammability
- UL 94 V2
- Hazardous good
- No
- Material
- Polyamide 6.6 (PA66)
- Operating Temperature - °C
- -40 °C to +85 °C
- Specifications
- ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B
- UL-File Number
- E64139
- UL Listed (US and Canada)
- Yes
- UL OCD link
- ZODZ.E64139 ZODZ2.E64139 ZODZ7.E64139 ZODZ8.E64139
- UL Recognized (US and Canada)
- Yes
More Information
- ETIM 6.0
- EC000046
- ETIM 7.0 Key
- EC000046
- UNSPSC Key
- 39121703
Product Dimensions
- Bundle ∅ max.
- 102.0mm
- Bundle ∅ min.
- 5.0mm
- Cable Tie Head Height (Metric)
- 7.9mm
- Cable Tie Head Length (metric)
- 28.4mm
- Cable Tie Head Width (metric)
- 13.4mm
- for Hole ∅ (FH)
- 6.5 mm
- Height (H)
- 7.90mm
- Length (L)
- 395.0mm
- Min.Tensile Strength
- 535N
- Strap Width max. (G)
- 0.51"
- Thickness (T)
- 1.8mm
- Width (W)
- 7.6mm
