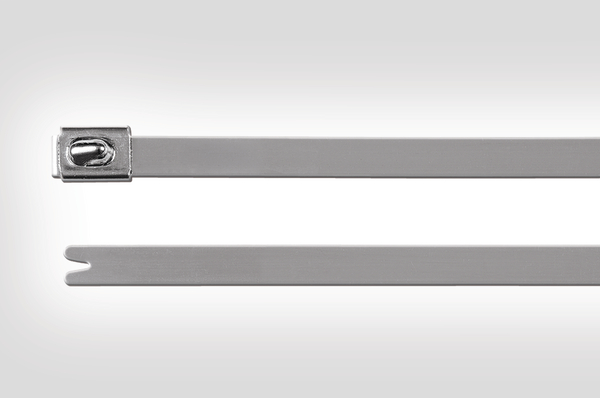

HellermannTyton 111-94209
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Metal ties are predestined for all areas with requirements for high holding force, reliability and fire resistance. The MBT range of stainless steel cable ties can be used in chemical industry and on oil platform as well as in mass transit, shipbuilding and mining industry. MBT ties are also suitable for machine building, apparatus construction and in the outside area of radio technology. Additionally MBT ties are a good solution to fix lighting in theatres and exhibition halls.Cable ties with ball-lock
HellermannTyton 111-94209 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Application 2
- The stainless steel cable tie range can be used in the most arduous of conditions or where the additional security, strength and fire resistance of a metal fixing is required. Used in all industries from Mass Transit, Ship building, oil rigs, mining, and chemical to theatres and exhibition halls. In the event of a fire, cables will remain securely held in place and will not fall to block emergency exits.
- Application Tool
- KST-STG200, HDT16, MK9SST, MK9PSST
- Colour
- Metal (ML)
- Features and Benefits
- MBT (Metal Ball Bearing Ties) ties have a non-releasable locking feature and offer infinite adjustment within their length. The MLT ties are a heavy duty type ties, once installed they can be opened and re-used if required. MAT ties are similar in design to conventional 'plastic' cable ties and work on a ratchet system. These ties are available in both types 316 and 304 stainless steels.
- Identification Plate Position
- none
- Package Quantity per
- bag
- Pack Cont.
- 50pcs.
- PART DESCRIPTION
- MBT20H-SS316-ML
- Product Family
- MBT-Series, stainless steel 316
- Product Group
- Cable ties with ball-lock
- Releasable Closure (Yes/No)
- No
- Short Description
- Metal Cable Tie with Ball-Lock 521x7.9 mm
- Tie Closure
- ball bearing lock
- Variant
- No Serration
Logistics and Packaging
- EAN / GTIN
- 5022660020681
- Packaging 1 - Height (m)
- 0.055m
- Packaging 1 - Length (m)
- 0.548m
- Packaging 1 - Qty
- 50
- Packaging 1 - Type
- bag
- Packaging 1 - Volume (m³)
- 0.00235m³
- Packaging 1 - Weight (kg)
- 0.56kg
- Packaging 1 - Width (m)
- 0.078m
- Packaging 3 - Height (m)
- 0.204m
- Packaging 3 - Length (m)
- 0.591m
- Packaging 3 - Qty
- 1000
- Packaging 3 - Type
- carton
- Packaging 3 - Volume (m³)
- 0.048m³
- Packaging 3 - Weight (kg)
- 12.002kg
- Packaging 3 - Width (m)
- 0.398m
- Packaging 4 - Height (m)
- 1.164m
- Packaging 4 - Length (m)
- 1.2m
- Packaging 4 - Qty
- 20000
- Packaging 4 - Type
- pallet
- Packaging 4 - Volume (m³)
- 1.117m³
- Packaging 4 - Weight (kg)
- 261.04kg
- Packaging 4 - Width (m)
- 0.8m
- Weight
- 0.56kg
Material and Specifications
- ELV compliant (Article 4 - 2)
- YES
- Flammability
- non-burning
- Halogenfree
- Yes
- Hazardous good
- No
- Limited Fire Hazard
- Yes
- Material
- Stainless Steel (SS316)
- Operating Temperature - °C
- -80 °C to +538 °C
- Specifications
- IEC 60092, IEC 62275:2006
More Information
- ETIM 6.0
- EC000046
- ETIM 7.0 Key
- EC000046
- UNSPSC Key
- 39121703
Product Dimensions
- Bundle ∅ max.
- 152.0mm
- Bundle ∅ min.
- 12.0mm
- Length (L)
- 521.0mm
- Min.Tensile Strength
- 2000.0N
- Thickness (T)
- 0.3mm
- Width (W)
- 7.9mm
