Description
HellermannTyton 111-93019 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Application Tool
- MK3PNSP2, MK3SP, MK20, EVO7
- Colour
- White (WH)
- Identification Plate Position
- none
- Package Quantity per
- pcs.
- Pack Cont.
- 100pcs.
- PART DESCRIPTION
- T30R-PA66V0-WH
- Product Family
- T-Series in PA66V0
- Product Group
- Cable Ties for higher fire-protection
- Releasable Closure (Yes/No)
- No
- Short Description

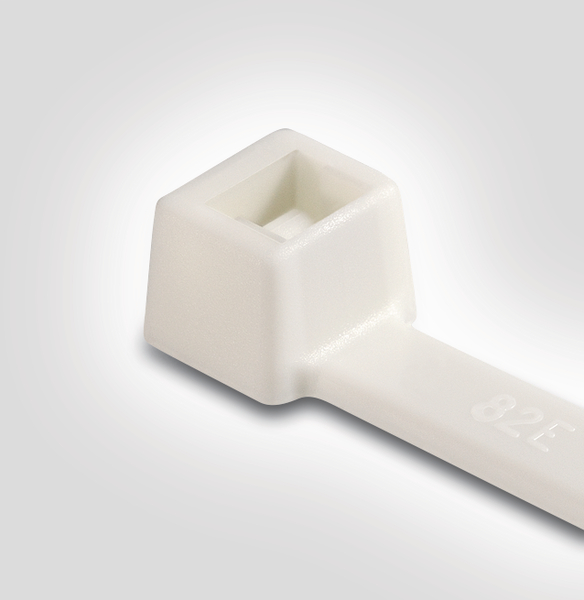

- Cable Tie 150x3.5 mm PA66V0 white
- Tie Closure
- plastic pawl
- Variant
- Inside Serrated
Logistics and Packaging
- EAN / GTIN
- 5022660019432
- Packaging 1 - Height (m)
- 0.027m
- Packaging 1 - Length (m)
- 0.191m
- Packaging 1 - Qty
- 100
- Packaging 1 - Type
- bag
- Packaging 1 - Volume (m³)
- 0.00085m³
- Packaging 1 - Weight (kg)
- 0.07kg
- Packaging 1 - Width (m)
- 0.164m
- Packaging 3 - Height (m)
- 0.204m
- Packaging 3 - Length (m)
- 0.591m
- Packaging 3 - Qty
- 10000
- Packaging 3 - Type
- carton
- Packaging 3 - Volume (m³)
- 0.048m³
- Packaging 3 - Weight (kg)
- 7.802kg
- Packaging 3 - Width (m)
- 0.398m
- Packaging 4 - Height (m)
- 1.164m
- Packaging 4 - Length (m)
- 1.2m
- Packaging 4 - Qty
- 200000
- Packaging 4 - Type
- pallet
- Packaging 4 - Volume (m³)
- 1.117m³
- Packaging 4 - Weight (kg)
- 177.04kg
- Packaging 4 - Width (m)
- 0.8m
- Weight
- 0.07kg
Material and Specifications
- ELV compliant (Article 4 - 2)
- YES
- EN 45545-2 Results
- R22 HL2, R23 HL3
- Flammability
- UL 94 V0
- Halogenfree
- Yes
- Hazardous good
- No
- Limited Fire Hazard
- Yes
- Material
- Polyamide 6.6 V0 (PA66V0)
- Operating Temperature - °C
- -40 °C to +85 °C, (+105 °C, 500 h)
- Specifications
- DIN EN 45545-2 (08/2013) , IEC 60092 series
More Information
- ETIM 6.0
- EC000046
- ETIM 7.0 Key
- EC000046
Product Dimensions
- Bundle ∅ max.
- 35.0mm
- Bundle ∅ min.
- 3.0mm
- Length (L)
- 150mm
- Min.Tensile Strength
- 135N
- Thickness (T)
- 1.2mm
- Width (W)
- 3.5mm
