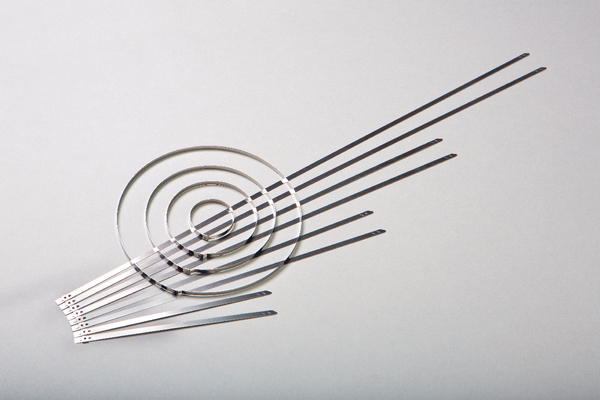

HellermannTyton 111-01631
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Stainless steel cable ties are designed for fixing loads and cables securely in hazardous industrial environments such as railway carriages, jet engines, inside power plants or on offshore drilling platforms, where exposure to extremes of weather, saltwater and temperature are common. The MST-Series tie with its new punch-locking mechanism is an excellent choice especially for environments which require high resistance to vibrations.Cable Ties with punch-locking mechanism
HellermannTyton 111-01631 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Application Tool
- MST9
- Colour
- Metal (ML)
- Description
- Stainless steel tie with a new locking mechanism!
- Features and Benefits
- The punch-lock type metal tie employs a new punch-lock mechanism instead of the lock mechanism implemented in traditional ball lock type* metal ties, which uses friction between the ball and strap. This new method keeps the lock tight even when it is subjected to vibrations or other phenomenon, making this tie a reliable choice for environments prone to vibrations, such as on trains. *Ball lock type metal ties use a lock mechanism which has a stainless steel ball in the head. The MST6 and MST9, which are specialized tools used for tightening and cutting off the end of metal ties, improve the safety of the area around the cut edge, allowing for a smooth cutting surface. Made of stainless steel SUS304, this product is not only weather-resistant but also highly resistant to heat, fire, and radiation. Therefore, it can be used in challenging environments including indoor, outdoor, and underground installations.
- Fixation Method
- Others
- Identification Plate Position
- none
- Package Quantity per
- bag
- Pack Cont.
- 50pcs.
- PART DESCRIPTION
- MST360M-SS304-ML
- Product Family
- MST-Series, stainless steel 304
- Product Group
- Cable Ties with punch-locking mechanism
- Releasable Closure (Yes/No)
- No
- Short Description
- Stainless Steel Cable Tie with punch-locking mechanism 369x8.9 mm
- Tie Closure
- punch lock
- Variant
- No Serration
Logistics and Packaging
- EAN / GTIN
- 4944387109429
- Packaging 1 - Height (m)
- 0.012m
- Packaging 1 - Length (m)
- 0.45m
- Packaging 1 - Qty
- 50
- Packaging 1 - Type
- bag
- Packaging 1 - Volume (m³)
- 0.00073m³
- Packaging 1 - Weight (kg)
- 0.272kg
- Packaging 1 - Width (m)
- 0.135m
- Packaging 3 - Height (m)
- 0.18m
- Packaging 3 - Length (m)
- 0.45m
- Packaging 3 - Qty
- 1500
- Packaging 3 - Type
- carton
- Packaging 3 - Volume (m³)
- 0.0251m³
- Packaging 3 - Weight (kg)
- 8.355kg
- Packaging 3 - Width (m)
- 0.31m
- Packaging 4 - Height (m)
- 1.224m
- Packaging 4 - Length (m)
- 1.2m
- Packaging 4 - Qty
- 45000
- Packaging 4 - Type
- pallet
- Packaging 4 - Volume (m³)
- 1.175m³
- Packaging 4 - Weight (kg)
- 271.65kg
- Packaging 4 - Width (m)
- 0.8m
- Weight
- 0.272kg
Material and Specifications
- ELV compliant (Article 4 - 2)
- YES
- Flammability
- non-burning
- Halogenfree
- Yes
- Hazardous good
- No
- Limited Fire Hazard
- Yes
- Material
- Stainless Steel (SS304)
- Operating Temperature - °C
- -80 °C to +538 °C
More Information
- ETIM 6.0
- EC000046
- ETIM 7.0 Key
- EC000046
Product Dimensions
- Bundle ∅ max.
- 100.0mm
- Bundle ∅ min.
- 8mm
- Length (L)
- 369mm
- Min.Tensile Strength
- 1500N
- Thickness (T)
- 0.3
- Width (W)
- 8.9mm
