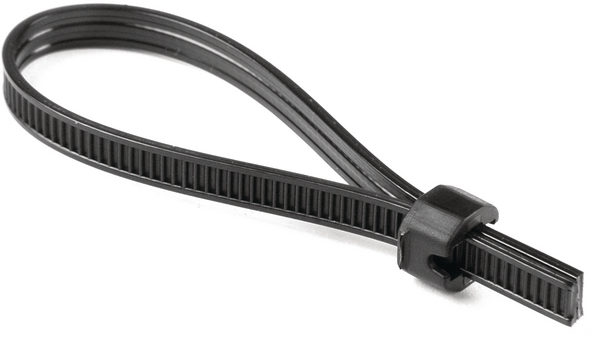

HellermannTyton 102-66210
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The outside serrated strap is perfectly suitable for sensitive surfaces and can be used for bundling and fixing of cables, pipes and hoses, as well as for bag sealing.
The materials are particularly appropriate for high volume bundling applications in cable assembly, automotive, industrial and packaging applications.Waste-free bundling up to Ø 80 mm
The materials are particularly appropriate for high volume bundling applications in cable assembly, automotive, industrial and packaging applications.Waste-free bundling up to Ø 80 mm
HellermannTyton 102-66210 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Application Tool
- ATS3080
- Colour
- Black (BK)
- Description
- Closures Black ATS3080
- Features and Benefits
- HellermannTyton developed a very innovative solution for harnesses of the Automotive industry. With the ATS3080 it is now possible to fasten fixings, also known as foot parts, with an automatic binding. This simplifies the final assembly of harnesses, because the pre-assembled harness can be fixed directly at the metal edge or in a hole! It is the first time that you can produce a complex harness completely automatically. Another advantage of the ATS3080 is the three different jaw diameters: 30mm, 50mm and 80mm are available. If your application needs ties from very small up to 80mm, you use the 80´s. If your max. is 45mm you choose the 50´s and save time. You don´t have to adjust anything. The sophisticated electronics recognise it and change the parameters for the cycle.
- Identification Plate Position
- none
- Operation
- electrical
- Package Quantity per
- pcs.
- Pack Cont.
- 5000pcs.
- PART DESCRIPTION
- Closures Black ATS3080-PA66HSUV-BK
- Product Family
- Cable ties for Autotool System 3080
- Product Group
- Waste-free bundling up to Ø 80 mm
- Releasable Closure (Yes/No)
- No
- Short Description
- Automatic cable tying system closure, 8x9 mm, PA66HSUV, black
- Tool suitable cable tie material
- Plastic
Logistics and Packaging
- EAN / GTIN
- 4031026216911
- Packaging 1 - Height (m)
- 0.3m
- Packaging 1 - Length (m)
- 0.55m
- Packaging 1 - Qty
- 5000
- Packaging 1 - Type
- bag
- Packaging 1 - Volume (m³)
- 0.10725m³
- Packaging 1 - Weight (kg)
- 1.634492kg
- Packaging 1 - Width (m)
- 0.65m
- Packaging 3 - Height (m)
- 0.406m
- Packaging 3 - Length (m)
- 0.398m
- Packaging 3 - Qty
- 20000
- Packaging 3 - Type
- carton
- Packaging 3 - Volume (m³)
- 0.0598m³
- Packaging 3 - Weight (kg)
- 7.167968kg
- Packaging 3 - Width (m)
- 0.37m
- Packaging 4 - Height (m)
- 0.957m
- Packaging 4 - Length (m)
- 1.2m
- Packaging 4 - Qty
- 240000
- Packaging 4 - Type
- pallet
- Packaging 4 - Volume (m³)
- 0.919m³
- Packaging 4 - Weight (kg)
- 106.992kg
- Packaging 4 - Width (m)
- 0.8m
- Reel Diameter
- 15.25"
- 387mm
- Reel Weight
- 3.5lbs
- 1.58kg
- Reel Width
- 3.5"
- 88.9mm
- Weight
- 1.575kg
Material and Specifications
- ELV compliant (Article 4 - 2)
- YES
- Flammability
- UL 94 V2
- Hazardous good
- No
- Material
- Polyamide 6.6, heat and UV-stabilised (PA66HSUV)
- Operating Temperature - °C
- -40 °C to +105 °C, (+145 °C, 500 h)
More Information
- ETIM 6.0
- EC000046
- ETIM 7.0 Key
- EC000046
- UNSPSC Key
- 39121703
Product Dimensions
- Bundle ∅ max.
- 80.0mm
- Bundle ∅ min.
- 0.0mm
- Height (H)
- 5.4mm
- Length (L)
- 9.0mm
- Min.Tensile Strength
- 225N
- Width (W)
- 8.0mm
