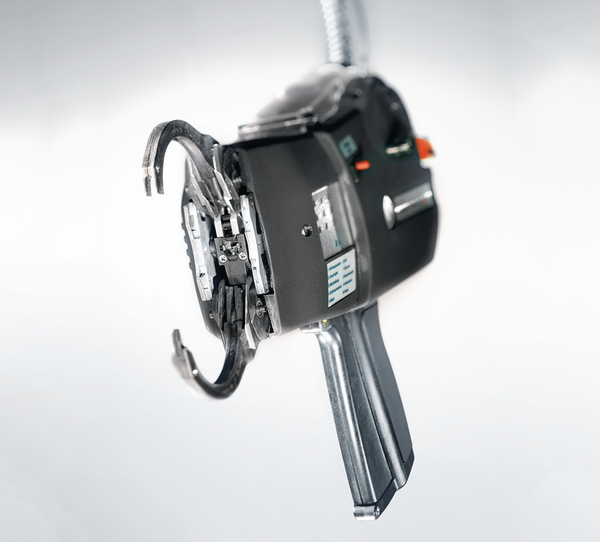

HellermannTyton 102-00000

Base Data

• Bench mount kit
  • Tool and tie reel stand including footpedal
• Cable Ties
  • 102-66109, 102-66110, 102-66209, 102-66210
• Colour
  • Black (BK)
• Description
  • Autotool System 3080
• Features and Benefits
  • The Autotool System 3080 is innovative for its strap and closures. The two-piece consumable consists of strap and closures, is waste free and guarantees optimised material utilisation. No time loss when cleaning or opening waste boxes. This allows bindings with flush cut off and together with the plain inner surface of the strap this prevents damage to wire insulation. The material is available on reels of 500m strap or 5000 pieces closures. Another advantage of the Autotool System 3080 are the three different jaw diameters which can be changed very quickly. Choose the jaw diameter according to your bundling diameter since the cycle time depends on the jaw diameter. By choosing a smaller diameter faster bundling can be achieved. The following jaw diameters are available: 30mm, 50mm and 80mm.
• For Cable Tie Width
  • 4.5 - 4.5mm
• Harness board accessory HH20
  • Raises the bundle off the harness board at optimum height and allows the operator to eliminate handling the bundle when applying ties.
• Operation
  • electrical
• Overhead Suspender
  • Overhead suspension 3080 and tie reel stand including balancer
• Package Quantity per
  • pcs.
• Pack Cont.
  • 1
• PART DESCRIPTION
  • ATS3080-BK
• Power Supply unit
  • Input: 240/115 V a.c., 50/60 Hz, Output: 48 V d.c., max. 150 W
• Product Family
  • Autotool System 3080
• Product Group
  • Waste-free bundling up to Ø 80 mm
• Short Description
  • Automatic cable tying system ATS3080
• Tension Setting Tools
  • Adjustable
• Tool property
  • Automatic cut off
• Tool suitable cable tie material
  • Plastic

Logistics and Packaging

• EAN / GTIN
  • 4031026215822
• Packaging 1 - Height (m)
  • 0.147m
• Packaging 1 - Length (m)
  • 0.473m
• Packaging 1 - Qty
  • 1
• Packaging 1 - Type
  • pcs.
• Packaging 1 - Volume (m³)
  • 0.02656m³
• Packaging 1 - Weight (kg)
  • 4.2kg
• Packaging 1 - Width (m)
  • 0.382m
• Packaging 3 - Height (m)
  • 0.168m
• Packaging 3 - Length (m)
  • 0.481m
• Packaging 3 - Qty
  • 1
• Packaging 3 - Type
  • carton
• Packaging 3 - Volume (m³)
  • 0.0396m³
• Packaging 3 - Weight (kg)
  • 4.56kg
• Packaging 3 - Width (m)
  • 0.49m
• Packaging 4 - Height (m)
  • 1.152m
• Packaging 4 - Length (m)
  • 1.2m
• Packaging 4 - Qty
  • 10
• Packaging 4 - Type
  • pallet
• Packaging 4 - Volume (m³)
  • 1.106m³
• Packaging 4 - Weight (kg)
  • 66.6kg
• Packaging 4 - Width (m)
  • 0.8m
• Weight
  • 4.2kg

Material and Specifications

• ELV compliant (Article 4 - 2)
  • YES
• Hazardous good
  • No

More Information

• ETIM 6.0
  • EC000453
• ETIM 7.0 Key
  • EC000453

Product Dimensions

• Bundle ∅ max.
  • 80.0mm
• Bundle ∅ min.
  • 0.0mm
• Cycle Time
  • 1.1-2.4 sec. depending on bundle diameter
• Power Supply
  • Electrically operated
• Tension Force
  • Adjustable
