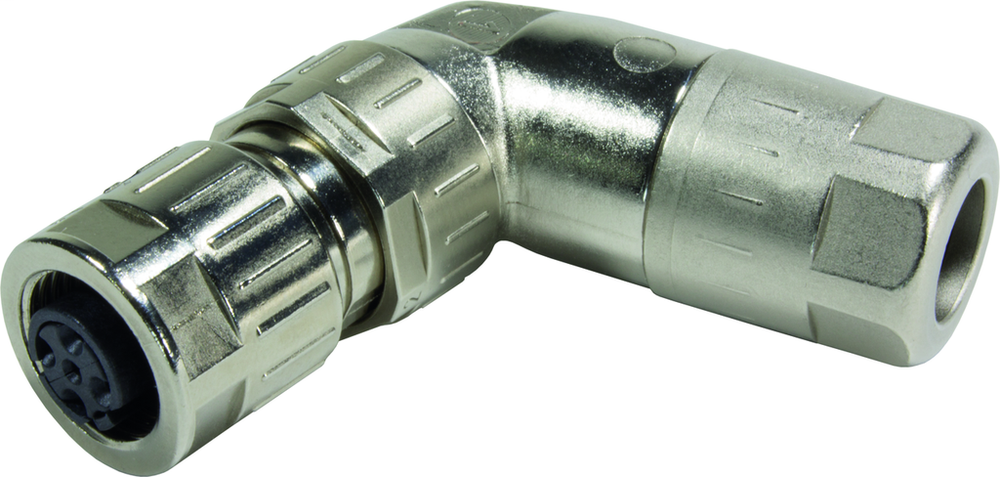

Harting 21038814405
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Cable connector, Angled, Female, D-coding, Crimp termination, Liquid crystal polymer (LCP), Contacts: 4, Conductor cross-section: 0.13 ... 0.82 mm², Rated current: 4 A, Zinc die-cast, Screw locking, Degree of protection: IP65 / IP67, when matedCable connector, Angled, Female, D-coding, Crimp termination, Liquid crystal polymer (LCP), Contacts: 4, Conductor cross-section: 0.13 ... 0.82 mm²
Harting 21038814405 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial data
- Country of origin
- Romania
- eCl@ss
- 27440102 Circular connector (for field assembly)
- European customs tariff number
- 85366990
- Net weight
- 68.5 g
- Packaging size
- 1
Identification
- Category
- Connectors
- Element
- Cable connector
- Identification
- Slim Design
- Series
- Circular connectors M12
- Specification
- Angled
Material properties
- China RoHS
- e
- ELV status
- compliant
- Material (hood/housing)
- Zinc die-cast
- Material (insert)
- Liquid crystal polymer (LCP)
- REACH ANNEX XIV substances
- No
- REACH Annex XVII substances
- No
- REACH SVHC substances
- No
- RoHS
- compliant
Specifications and approvals
- PROFINET
- Yes
- Specifications
- IEC 61076-2-101
- UL / CSA
- UL 2238 CYJV2.E302521 || CSA-C22.2 No. 182.3 CYJV8.E302521
Technical characteristics
- Ambient temperature
- -40 ... +85 °C
- Cable diameter
- 5.7 ... 8.8 mm
- Conductor cross-section
- AWG 26 ... AWG 18
- Contact resistance
- ≤ 10 mΩ
- Degree of protection acc. to IEC 60529
- IP65 / IP67 mated condition
- Insulation resistance
- >10
- Isolation group
- I (600 ≤ CTI)
- Mating cycles
- ≥ 500
- Overvoltage category
- III
- Pollution degree
- 3
- Rated current
- 4 A
- Rated impulse voltage
- 1.5 kV
- Rated voltage
- 48 V AC || 60 V DC
- Tightening torque
- 0.6 Nm
- Transmission characteristics
- Cat. 5 Class D up to 100 MHz
- Wire outer diameter
- ≤ 2.3 mm
- Wrench size (knurled screw / knurled nut)
- 15
Version
- Coding
- D-coding
- Details
- For Fast Ethernet applications only
- Gender
- Female
- Locking type
- Screw locking
- Number of contacts
- 4
- Shielding
- Shielded
- Termination method
- Crimp termination
